AT10II

12 Channels

Ideal for Professional Aerial Drones, Agricultural Drones and Industrial Drones

Easy Enough for a Beginner to Understand and Sophisticated Enough for an Expert

Best Bang for the Buck

Compatible with R12DS, R12DSM, R9DS, R6DS, R6DSM

Mix Control

DSSS&FHSS

3ms Response

Dual Antennas Receiver

Mini Receiver

Battery Polarity Control

Operating Current of 105mA

SBUS/PPM/PWM

Twelve Channels

Real-Time Telemetry

Upgrade with USB

Range of 4KM(2.5 Miles)

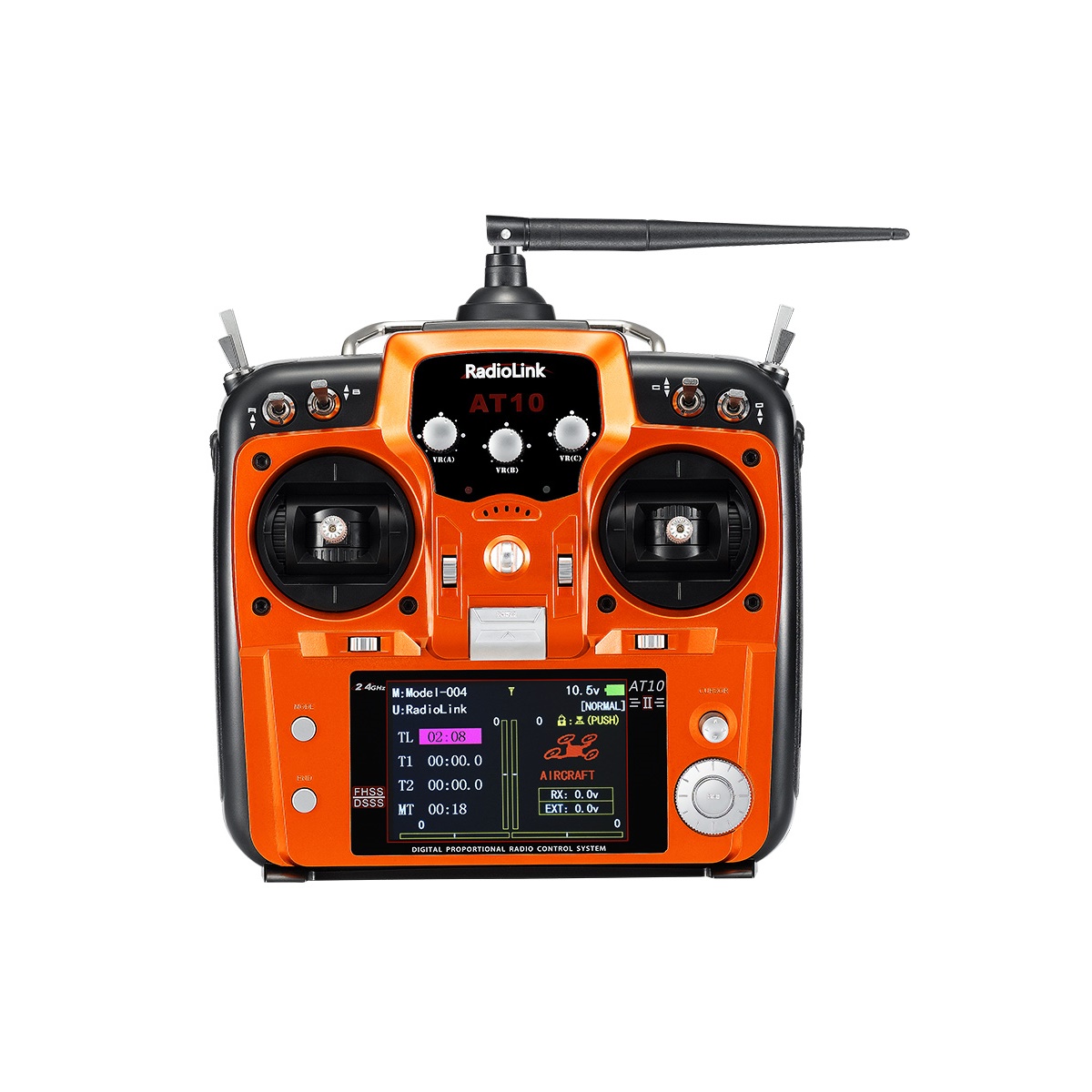

Ergonomically Designed

AT10II designed for both the experts and the beginners.

Switches in various lengths design let AT10II easy recognition and usage.

Long gimbal sticks increase precision movements. Mode 1 or 2 can specify during ordering. Users can change transmitter mode by a software setting (refer to the user manual for full details).

A throttle-stick spring retainer* included. Users can set up the throttle to meet their specific needs.

User-friendly design for each of operation and handling makes AT10II becomes an excellent transmitter for recreation, sport, competition, or 3D flying.

*Throttle-Stick Spring Retainer: The Throttle-Stick Spring Retainer allows the throttle to return to the neutral (center) position automatically.

* Maximum range is tested in an unobstructed area free of interference

* High Gain：Antenna gain is a reflection of the maximum distance, the higher the gain the farther the range.

* Bandwidth：The difference between the upper and lower frequencies in a band of frequencies. The AT10II uses 2400MHz to 2483.5MHz.

4KM (2.5 Miles) Range*

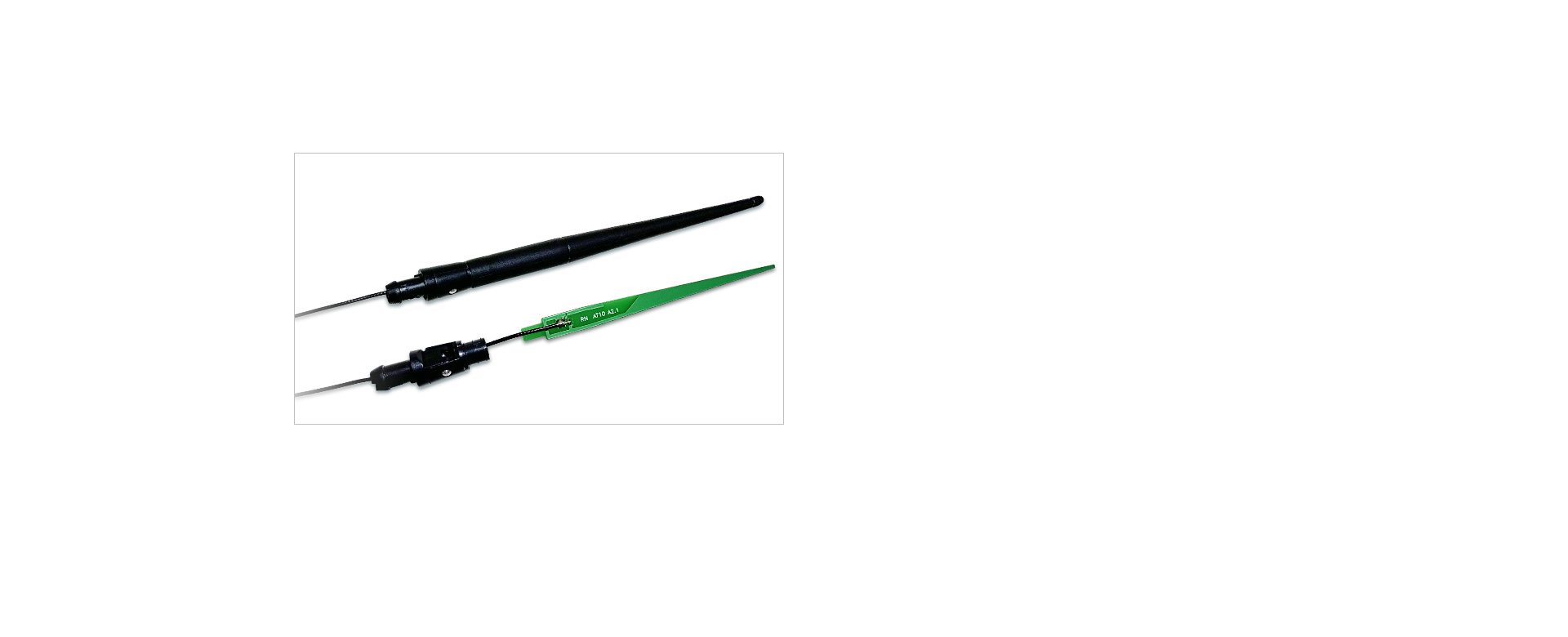

7dBi High Gain* transmitter antenna and low signal noise with a channel bandwidth* of 5.0 MHz ensure the control distance of AT10II up to 4000 meters.

Receiver R12DS, with diversity antenna, support SBUS and PWM signal output simultaneous, signal coverage all around, never afraid of hilly terrain.

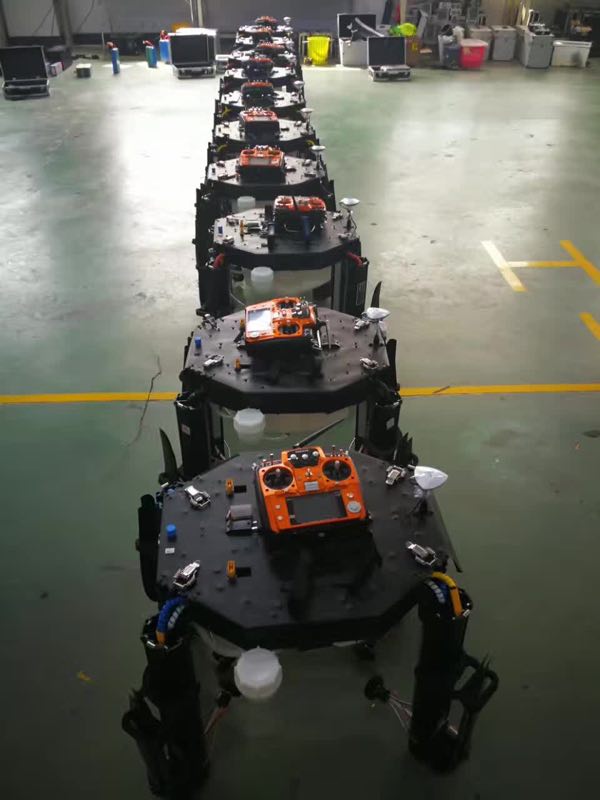

AT10II is an excellent choice for professional aerial, agricultural, and industrial drones.

* Direct Sequence Spread Spectrum transmissions multiply the data by a "noise" signal. This noise signal is a pseudorandom sequence of 1 and -1 at a frequency higher than that of the original signal.

* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.

* Quadrature Phase Shift Keying transmits two information bits, combined as one symbol, for a stable transmission signal.

DSSS and FHSS Hybrid Spread Spectrum

DSSS* and FHSS* hybrid spread spectrum, 16 channels pseudo-random frequency hopping, and QPSK* modulation ensures excellent anti-interference performance, highly constant, and stable transmission signal present on all 12 channels of AT10II.

The actual control distance of AT10II is 4000 meters air.

Multiple Alarms

Configurable sound and message alarms signal potential problems such as low RSSI value, low model voltage, low receiver voltage, or low transmitter voltage.

Programmable Mix Control

Easy to understand graph view for parameter setting.

Channels five through twelve can be programmed to any advanced setting*.

An Airbrake function can set by using pre-programmed mixes.

Multi mix such as aileron mix with elevator or flap mix with aileron for Fixed Wings or V-Shaped tail models.

* Number of channels varies depending on the model type

Anti-polarity Connect Protection

The voltage protection software technology of RadioLink ensures both the transmitter and receiver are protected from a reverse polarity connection.

Battery Box Dimensions: 115(L)x32(W)x30.5(H)mm (4.5”x1.25”x1.2”)

Operating voltage: from 7.4 to 15.0V

Battery Box Dimensions: 115(L)x32(W)x30.5(H)mm (4.5”x1.25”x1.2”)

Power Supply Circuit Design Provides Longer Battery Life

Switching Mode Power Supply (SMPS) makes the operating amperage of AT10II only 105mA (or less), it consumes 50% less power than similar products.

The transmitter can operate for twelve hours with an 1800 mAh LiPo battery.

Universal JST connector makes AT10II is easily adapted for various battery layouts: 8pcs AA batteries, LiPo battery(2S-4S), 18650 Lithium, Li-ion, NiMH or NiCad battery.

Pay attention: if you use a 18650 Lithium to power for AT10II, please make sure the 18650 Lithium is with a JST connector and the dimension of the battery case is 115*32*30.5mm(L*W*H=4.53"*1.26"*1.2")

Quickly Adapts to All Types of Models

Easy enough for a beginner to understand and sophisticated enough for an expert.

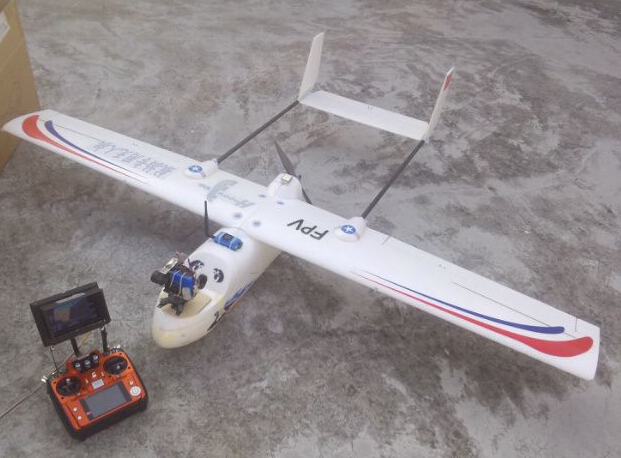

Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat, and Robot.

Multiple functionalities for each model class. Five programmed flight characteristics for each model.

Completely customizable switches (8), dials (3), and sliders (2) to meet their specific needs.

Transmitter automatically switches layout depending on the selected mode.

High Quality Components and Efficient Circuit Design Ensures Maximum Precision

All-new 4096 IC circuit minimizes servo jitter.

Optimal PCB layout design and the same potentiometer of FUTABA produce a very stable signal output, that maximum PWM jitter is 1.84us with a standard of just 0.5us, which is critical to precision flying.

Real-time Built-In Telemetry

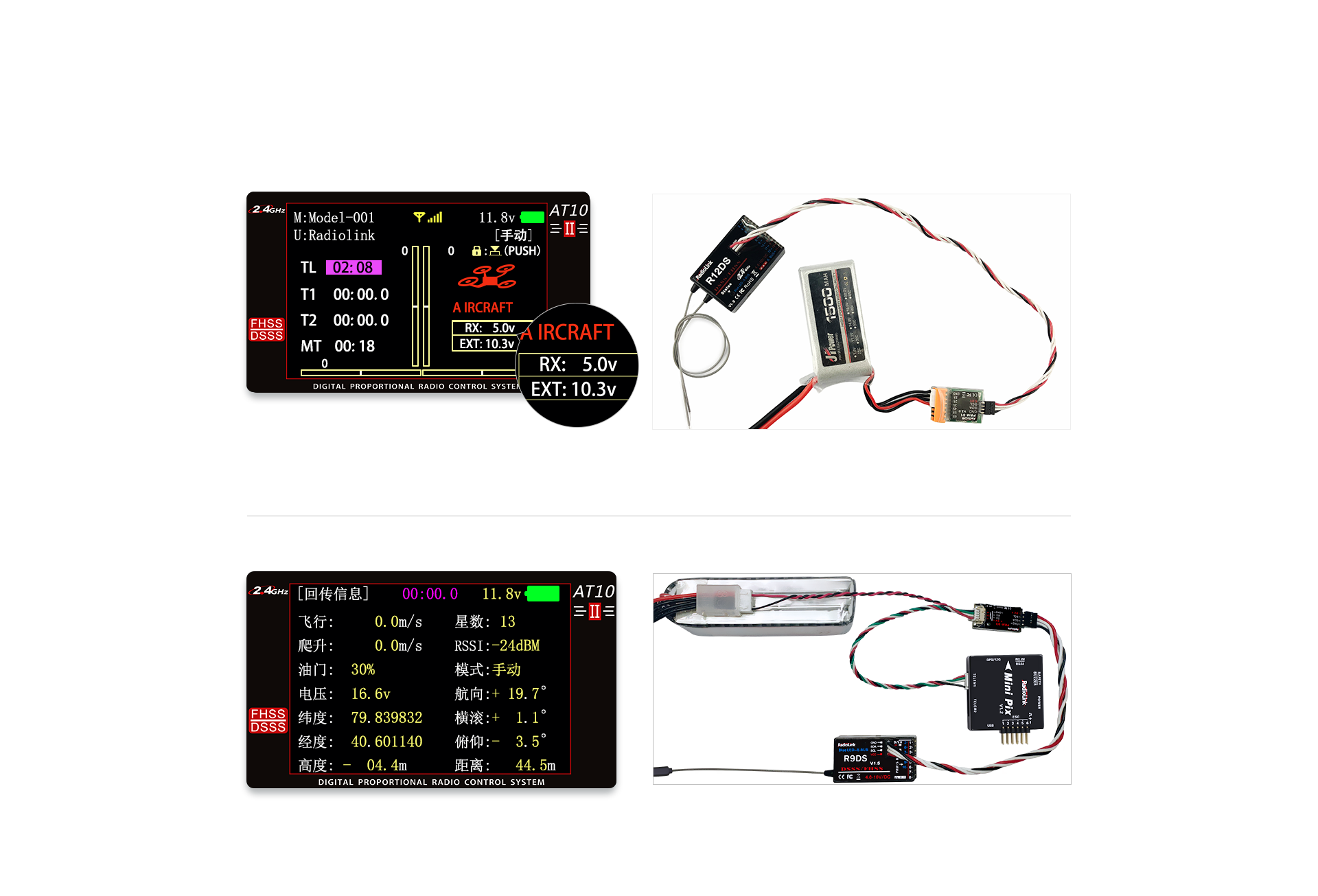

Real-time model data allows users to receive crucial information on the display of AT10II.

Large 5 x 3 ½” screen with sixteen colors is easy to read.

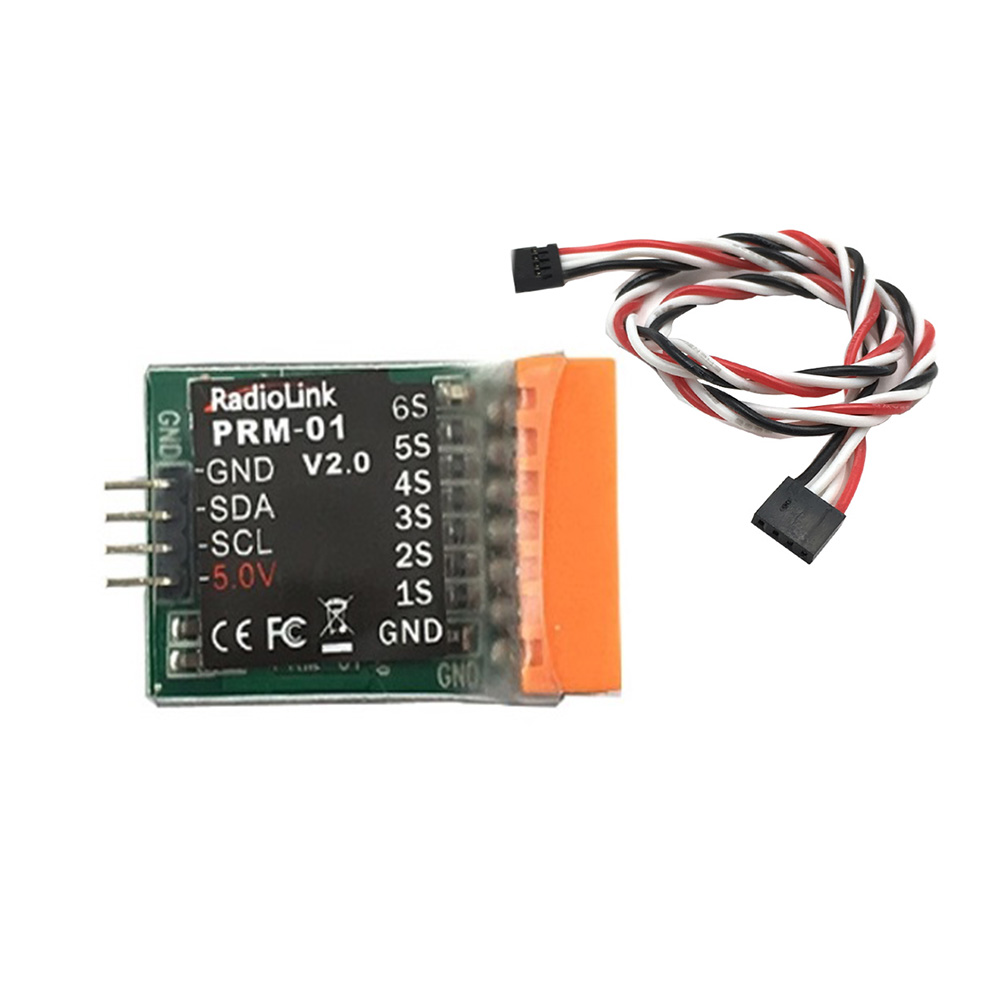

When paired with the voltage telemetry module PRM-01, the model voltage will display.

With the OSD information telemetry module PRM-03 and flight controller PIXHAWK, Mini Pix, TURBO PiX, and APM,

model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance will display.

When paired with the voltage telemetry module PRM-01, the model voltage will display.

With the OSD information telemetry module PRM-03 and flight controller PIXHAWK, Mini Pix, TURBO PiX, and APM,

model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance will display.

Output RSSI Value From Receiver To FPV Monitor

Real-time RSSI Telemetry When Racing

* How to output RSSI value from receiver to FPV when the transmitter is AT10II/AT10 and the flight controller is F4/F7?

* How to output RSSI value from receiver to FPV when the transmitter is AT10II/AT10 and the flight controller is PIXHAWK/Mini Pix/TURBO PiX？

Compatible with SBUS, PPM and PWM

SBUS, PPM, and PWM can operate simultaneously for seamless user control.

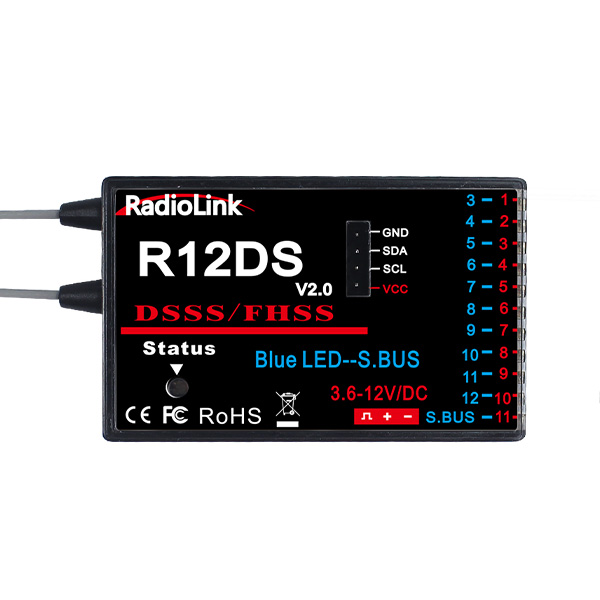

Standard receiver R12DS packed is the receiver with SBUS and PWM signal output.

AT10II is compatible with R6DSM, R6DS, R9DS, and R12DSM receivers of RadioLink except for R12DS.

Compatible receivers cover a wide range of aircraft to meet the customer’s most demanding applications.

Simulator Ready

AT10II includes a simulator interface feature that compatible with the majority of aircraft simulator software packages*.

While in simulator mode, the RF of AT10II can turn off to save battery power.

The simulator port (at the back of AT10II) is not only capable of communication with the simulator but also with the Wireless Trainer Link*.

* Simulator software sold separately. Please refer to the software MFG specifications for compatibility with RadioLink’s AT10II transmitter

Dimension of the battery case is 115*32*30.5mm(L*W*H=4.53"*1.26"*1.2")

USB Based Upgrades

AT10II is easy to update to the latest firmware with a USB cable and a computer.

Features

① Twelve channels (5 through 12 programmable by user)

② User name and model setup can be saved (up to 15 aircraft)

③ RSSI and Telemetry

④ Transmitter output greater than 100mW

⑤ Operating voltage 7.4 to 15.0v, amperage <105mA

⑥ Adjustable display brightness and contrast

⑦ Multiple alarms

⑧Fail Safe system: engages when a clean signal is lost or if the receiver battery is low

⑨ Servo reversing

⑩ Servo end-point adjustment

⑪ Adjustable servo travel limit (prevents pushrod jamming)

⑫ Servo Cycle function helps locate servo problems

⑬ Adjustable gimbal-stick length and tension

⑭ Dual, Triple and Exponential rates

⑮ Digitally controlled Trim switches

⑯ Sub-Trim program changes the servo neutral position

⑰ Compatible relievers: R12DS (Std pack), R12DSM, R9DS, R6DS and R6DSM

3ms Response

All-new high-speed processer circuits provide increased stability and accuracy.

All twelve channels respond simultaneously within 3ms makes AT10II with superior control in the most demanding situations
