Vibration Damping by Software
Based on the mature research and development of PIXHAWK, we took about one year to reanalyze and retest all the functions of all the models including fixed wing, multicopter and helicopter, made vibration damping by software to achieve better Altitude Hold effect come true. All the planes including helicopters, fixed wings and drones no need to add mounting frame.

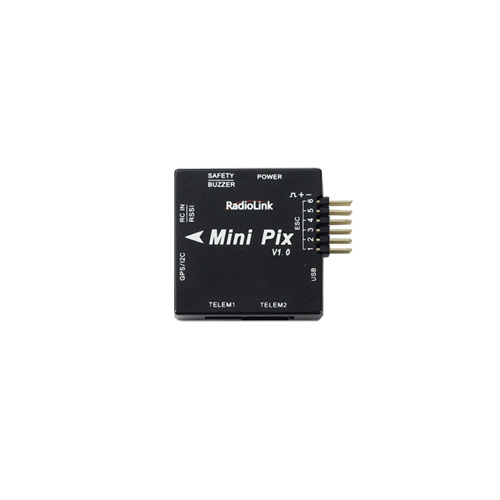

Mini Pix
Vibration Damping by Software
Better Altitude Hold
Mini Size as F4
The size is 39*39*12mm (1.54"*1.54"*0.47", same size as F4), even though the mini racing drone can put it in. The weight includes all the wires just 39 gram, which lengthen the flight time.
Worry-free Practice
Practice from PosHold Mode, Stabilize Mode to Acro Mode, easy to achieve from beginner to professional.
Obstacle Avoidance
(backward)
Work with SUI04,
Overall Synchronous Obstacle Avoidance
The Transfer Board* packed extends the I2C port quantity of MINI PIX as TWO. The two I2C ports can be used to connect corresponding I2C modules such as one ultrasonic sensor SU04* to achieve altitude holding and an LED module.
Or with the optional expansion board, maximum 6 ultrasonic sensors SUI04 can be connected to make aircraft avoid obstacles from 5 directions (forward/backward/left/right/upward) and altitude hold downward.
I2C Expansion Board
Obstacle Avoidance
(right)
Obstacle Avoidance
(left)
Obstacle Avoidance
(upward)
Obstacle Avoidance
(downward)
Obstacle Avoidance
(forward)
* I2C Transfer Board:Standard accessory packed with MINIPIX/TURBOPIX.
* I2C Expansion Board:I2C port of flight controller can be extended to maximum six.
Cost-effective Solution
Flight controller mini PIX, Radiolink M8N mini GPS TS100 and 8 channels remote control system T8FB, almost all the parts of RC drone you need we can offer. Best choice for DIY RC fans.
Top Configuration
RadioLink mini PIX, with STM32F405VGT6 processor and LPS22HB barometer from America ST, MPU6500 accelerometer from INVENSENS, QMC5883L compass with same technology as HMC5983 from Honeywell, is your best choice that with top configuration and affordable price.
Better Altitude Hold
It has a shell completely closed to protect the interaction effects of air current wake on air pressure during flight. The main board has air pressure vent to ensure the accuracy of the barometer testing. Shell design and vibration damping by software make Radiolink mini PIX achieve better Altitude Hold effect.

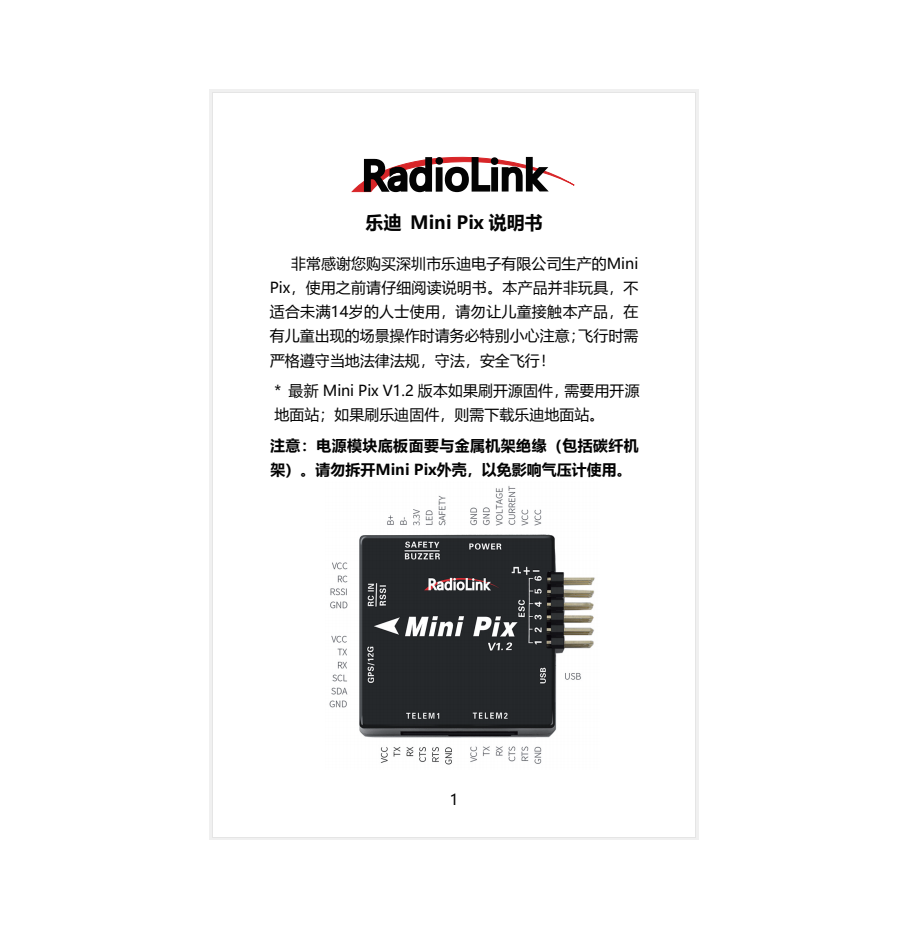

Mini Pix Ports
SAFETY/BUZZER: B+ B- 3.3V LED SAFETY
POWER: GND GND VOLTAGE(up to 3.3V) CURRENT(up to 3.3V) VCC(5V) VCC(5V)
RC IN/RSSI: VCC(5V) RC RSSI GND
GPS/I2C: VCC(5V) TX(OUT 3.3V) RX(IN 3.3V) SCL(3.3V pullups) SDA(3.3 pullups) GND
TELEM1: VCC(5V) TX(OUT 3.3V) RX(IN 3.3V) CTS(3.3V) RTS(3.3V) GND
TELEM2: VCC(5V) TX(OUT 3.3V) RX(IN 3.3V) CTS(3.3V) RTS(3.3V) GND
USB
Quality Assurance
Radiolink took about six months to develop the Automation Software Testing System, ensure the quality of every function of every Mini Pix.
As the only PIX manufacturer that realizes test automation from the sensor to the interface, testing efficiency of Radiolink is far more than traditional manual testing.
Package List for Mini Pix
-
Mini Pix*1
-
Power Module(2-12S)*1
-
Buzzer&Safety Switch*1
-
I2C Transfer Board*1
-
FC Status Indicate LED*1
-
Adhesive Tape*1
-
Adhesive Tape*1
-
Wire for Receiver&RSSI*1
-
Buzzer&Saftey Switch Wire*1
-
FC Status Indicate LED Wire*1
-
Power Module Wire*1
-
OSD Connect Cable*1
-
I2C Transfer Board Wire*1
-
USB Cable*1
-
User Manual*1
-
Packing Box*1
