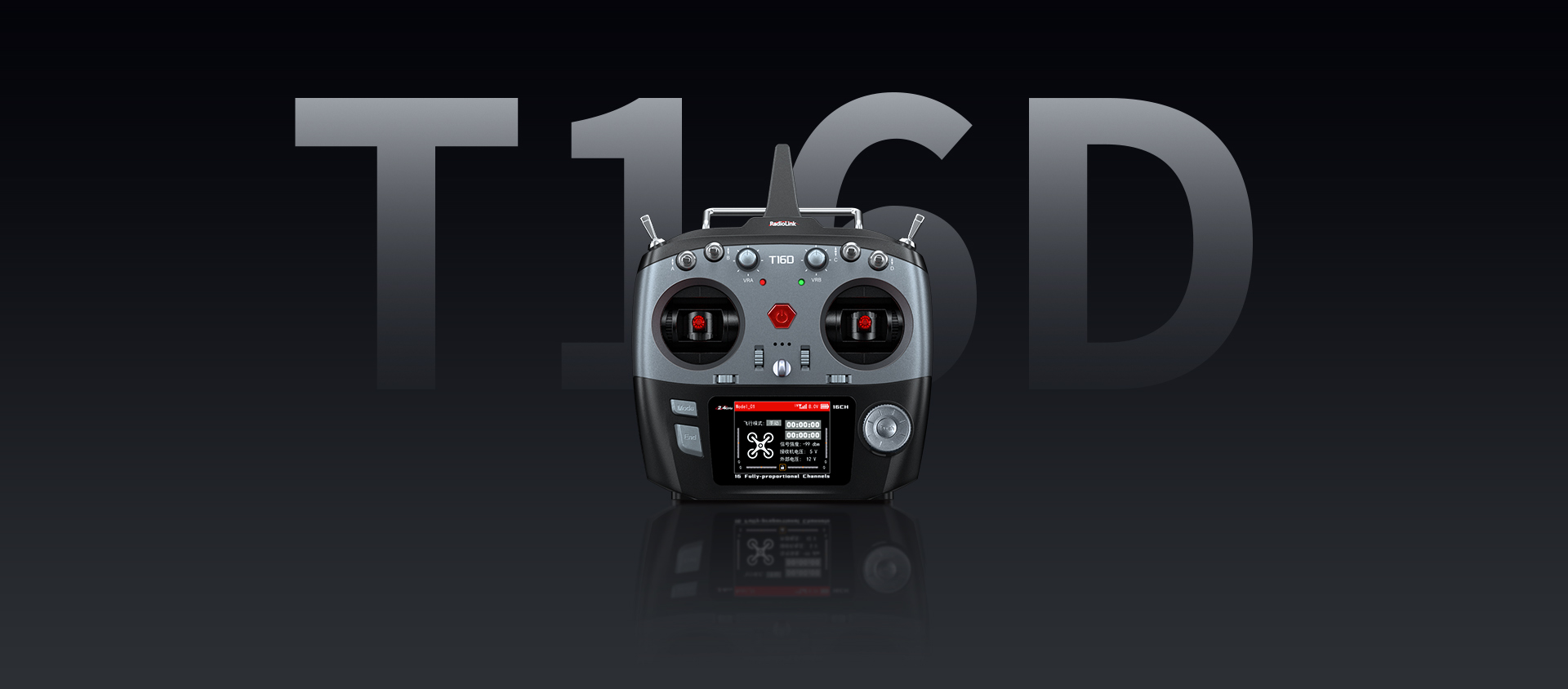

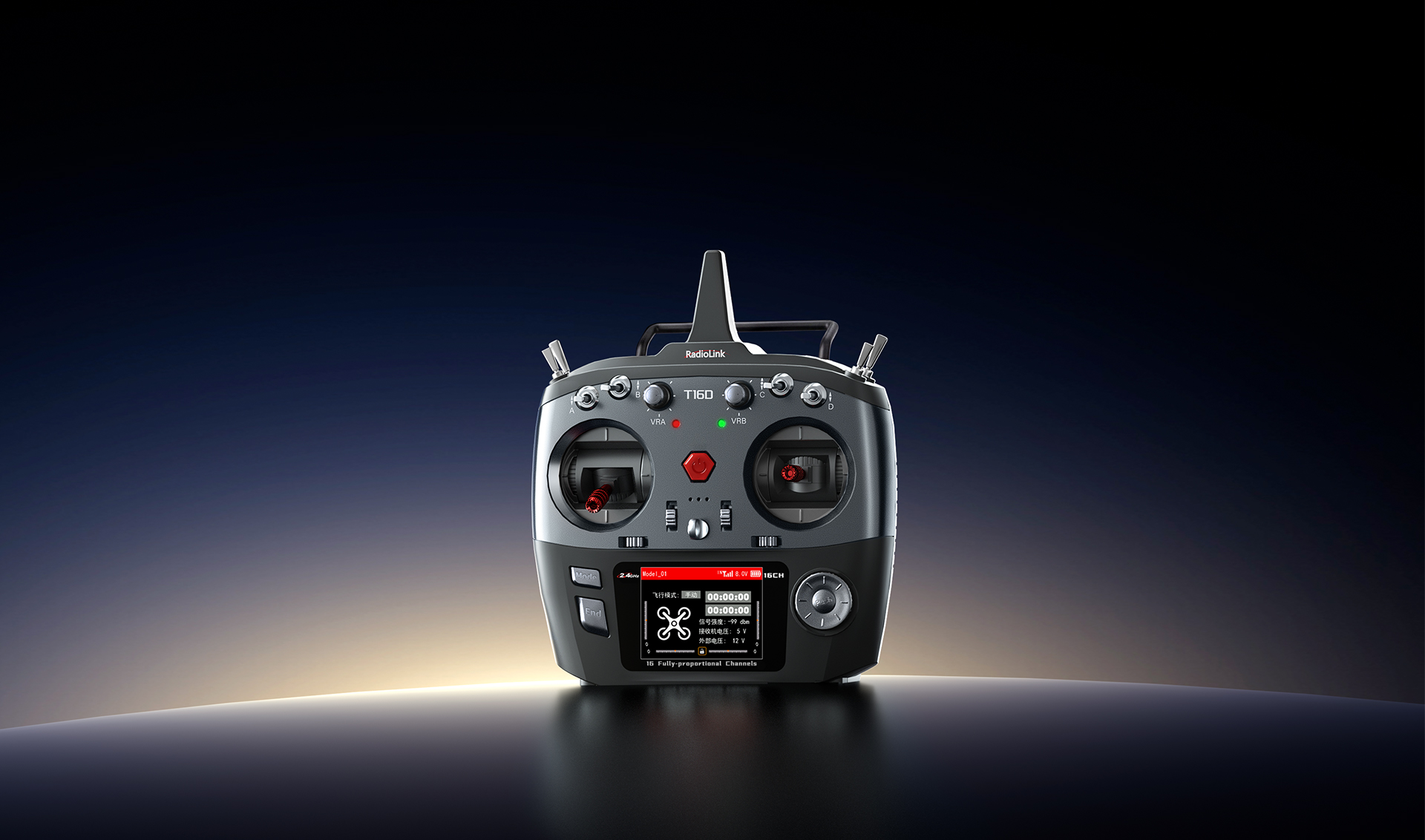

RadioLink T16D

16 Fully-proportional Channels Transmitter

Prodigy without Fear

Long-range

Module Supported

User-defined Voice Broadcast Pack

freeRTOS+

LVGL GUI

Multiple

Languages

16 Fully-proportional Channels

100 Group Models Storage

15 Groups of Models

Subsidiary ID Storage

Receiver R16F Support

Upgrade Online

Cutting-edge

Communication Technology

Fearless of Interference

Relying on its pioneering communication algorithms, the Radiolink remote controllers are widely used in robotics, automotive, security, and other fields.

The T16D has upgraded and optimized the original communication technology, improving the response speed and fault tolerance rate.

4000 Meters Control Distance 4096 Resolution 3ms Response

Excellent Anti-interference Capability

Excellent anti-interference performance, highly constant, and stable transmission signal present on all 16 channels of T16D. Hundreds of users can compete at the same time without interference, far exceeding the industry's maximum limit of eight units at the same time. Help T16D users participate in large scale events such as the International University Student Electronics Design/Engineering Competition, or racing drone competitions.

Mainstream Operating Systems

Maintain a Trailblazing Position through Constant R&D Investment

The mainstream embedded system freeRTOS can synchronize with the latest needs anytime and provide unlimited upgrades. Plus with LVGL GUI, it realizes a colorful and responsive user interface.

Compared with the current CO system used in open-source high-end remote controls that have stopped updating, freeRTOS is more powerful and efficient. It can embody high-resource processors' effects on low-resource processors, achieving the perfect combination of performance and price.

Supports ELRS, Crossfire, and Other Mainstream Long-range Modules

Realize FPV aircraft full parameter adjusted by the T16D

It fully supports ELRS, TBS Crossfire, and other mainstream long-rangemodules to realize FPV aircraft full parameters adjusted by the T16D. The operating system can be synchronized to its latest version with one click through each long-range module script file. Realize the perfect combination of the humanized user interface of the remote control and the various functions of the open-source long-range modules.

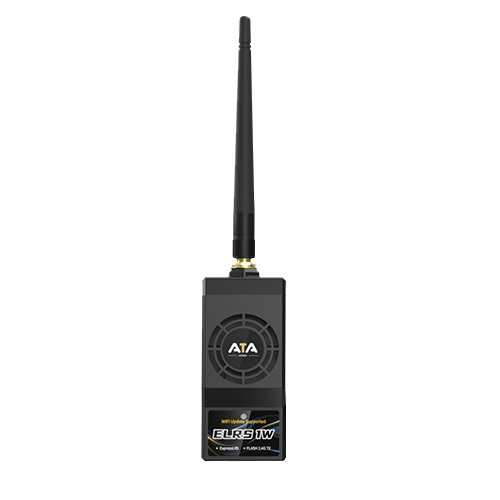

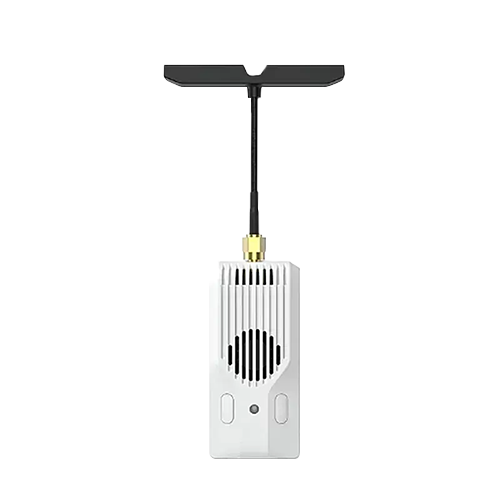

ELRS 2.4G 1W

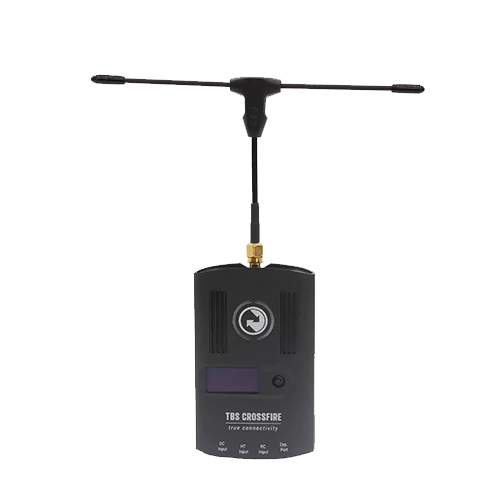

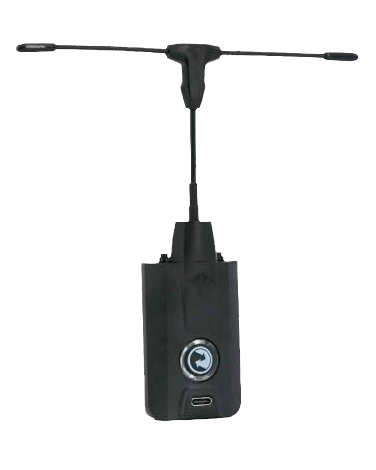

TBS Crossfire Nano TX

TBS

Crossfire TX

BETA FPV ELRS Nano TX

Due to their large size, the TBS Crossfire NanoTX, TBS Crossfire TX, and BETAFPV ELRS MicroTX do not support direct insertion.

If you need to use them, you must modify theback handle and purchase the fixing seat separately.

BETAFPV ELRS

Micro TX

Unique Personalized and Humanized Voice Broadcast Customization

Racing Drone Field, You Are the Coolest!

The unique user-defined voice, personalized and humanized voice broadcast. Voice broadcast language, broadcast form, and broadcast content can be customization according to actual user needs.

Mainstream Operating Systems

Maintain a Trailblazing Position through Constant R&D Investment

The mainstream embedded system freeRTOS can synchronize with the latest needs anytime and provide unlimited upgrades.

Plus with LVGL GUI, it realizes a colorful and responsive user interface. Compared with the current CO system used in open-source

high-end remote controls that have stopped updating, freeRTOS is more powerful and efficient. It can embody high-resource processors'effects on low-resource processors, achieving the perfect combination of performance and price.

16 Fully-proportional

Channels Transmitter

T16D, with 16 fully-proportionaal channels, exceeds the current high-end sixteen channels remote control which is

only twelve fully-proportional channels,

and the eighteen channels which are only fourteen fully-proportional channels.

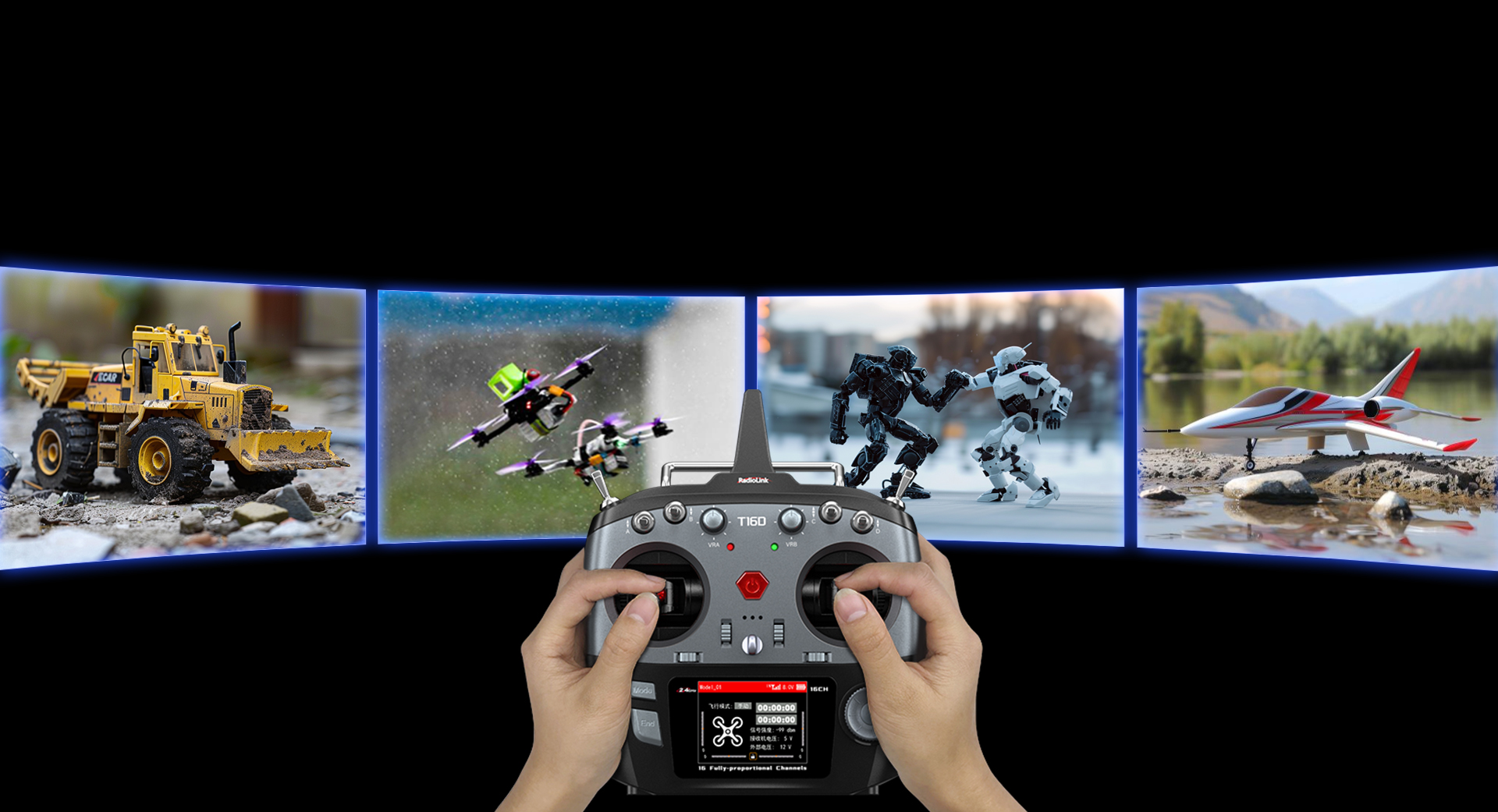

Rich user-defined functions can satisfy almost all products from engineering vehicles, and robots, to turbojet aircraft.

Full Models with Full Functions

T16D, the 16 fully proportional channels with full models and functions transmitters, support helicopters,

fixed-wings, gliders, multi-rotors, racing drones, football drones, engineering vehicles, racing boats,

robots, lawnmowers, bait boats, mechas, and other models on the market.

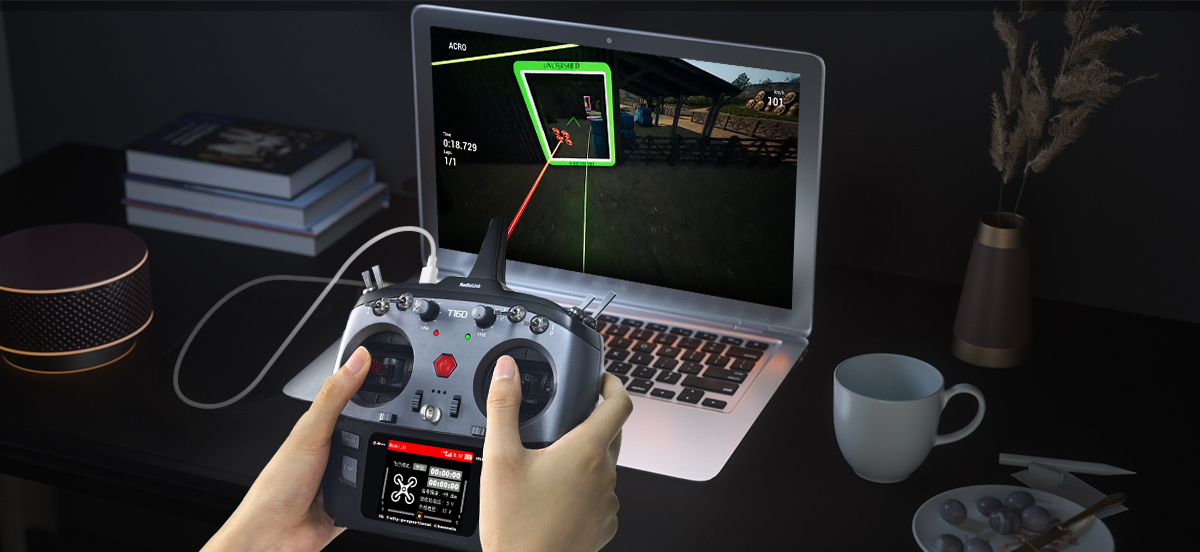

Built-in Simulator Functionality

Supports Both Wireless and Wired Simulators

Beyond traditional simulators like Phoenix, the T16D features built-in simulator support (requires a firmware upgrade to V1.7.1).

With no external dongle needed, connect to your computer via a Type-C cable to seamlessly support open-source simulators

such as TRYP FPV, AeroFly, Uncrashed, Liftoff、 FPV LOGIC、Velocidrone — compatible with macOS and Windows systems.

Traditional Wired Trainer Function

Built-in Simulator Function

External Wired Simulator

Trainer Function

Supports both the innovative wireless trainer mode and the traditional wired trainer mode.

Unlike traditional trainer cables that restrict the instructor’s movement, the wireless trainer link allows the instructor to move freely within 600 meters without any impact! No need to stand constantly, run, or jump throughout the entire training session—true freedom for the instructor. Teaching is no longer “hard labor”!

Innovative Wireless Trainer Function

Built-in Simulator Function

Real-time Flight Controller Data Transmission

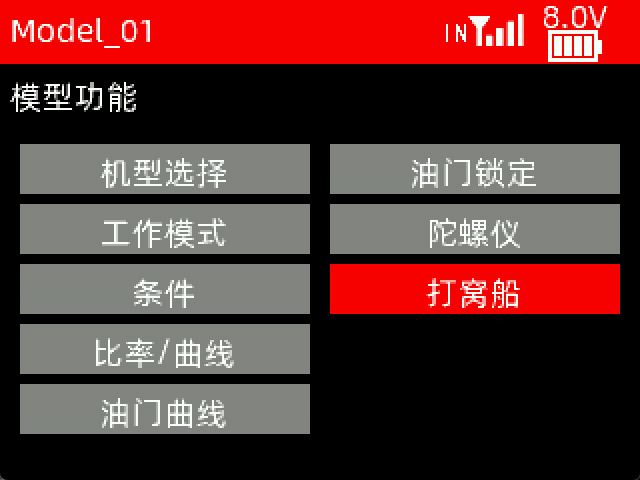

In bait boat mode, the T16D can store up to 100 fishing-point GPS coordinates.

Each fishing point can be named by the user, so anglers no longer need to remember or guess fishing-point numbers.

The device can transmit real-time data such as Ship Distance, Satellite Number, Ship Voltage, Longitude, Latitude, and display route maps. With one click, users can check the flight-control mode, the coordinates of the fishing point information, and the home point information.

One-Key Restore User-Defined Settings

OEMs/training institutions/Individual users can choose to restore OEM-configured/customized parameters instead of the controller manufacturer’s defaults.

OEMs/training institutions/Individual users can also choose to restore the controller manufacturer’s default parameters easily.

32 Groups of Programmable Mix Control

Unleash the Full Potential of Your Excavator!

With 32 groups of programmable mixing control, seamlessly control multi-functional operations including oil pumps, hydraulics, chainsaws, buckets, sound modules, and indicator lights to meet all your excavator simulation needs.

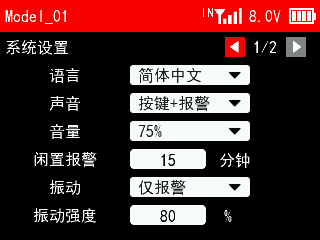

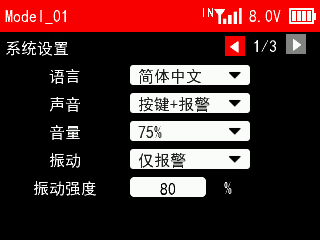

Multiple Languages

The optional language menu includes Chinese, English, German, French, Russian, Japanese, Spanish, Korean, Thai and Polish, etc.

Also, voice broadcasts can be customized in multiple languages.

* More language versions are being added continuously.

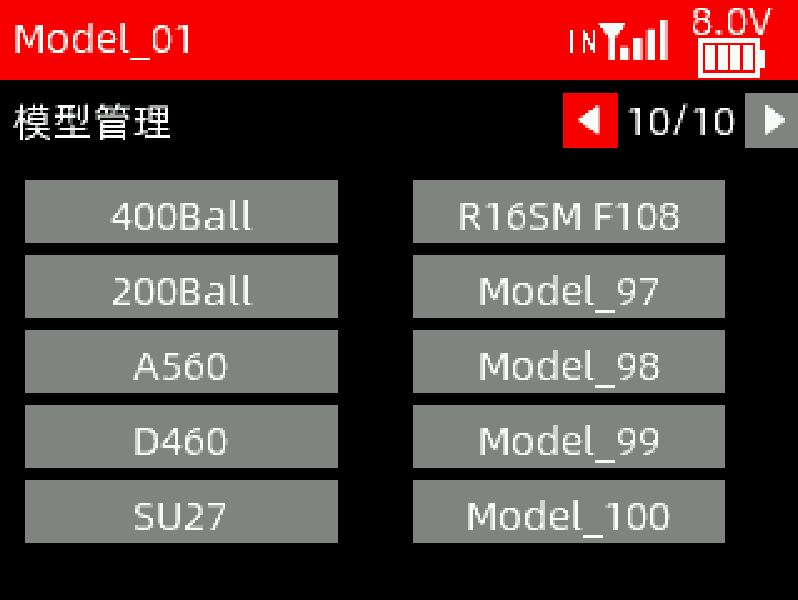

Radiolink One-Click Aircraft Mode Switching

After upgrading the T12D to firmware V1.8.2+, models 91-96 in the "MODEL" feature pre-loaded configurations for A560, D460, SU27, the 200mm soccer drone, the 400mm soccer drone, and the optical flow FPV drone F108.

After toggling the corresponding flight mode switch, in addition to the main interface display of the remote controller, the remote controller also synchronizes the voice broadcast of the current flight mode to avoid the situation where there are too many flight modes and it is impossible to remember them accurately, or the flight mode is switched incorrectly.

Ergonomically Designed

Four 2-position switches, three 3-position switches, 2 pieces of dials, 2 pieces of sliders(can return to the center automatically),

and a trainer switch, plus ergonomically designed, make the T16D fit a wide range of pilot needs.

User-friendly design for each operation and handling makes T16D become an excellent transmitter for recreation, competition, or 3D aerobatics flying.

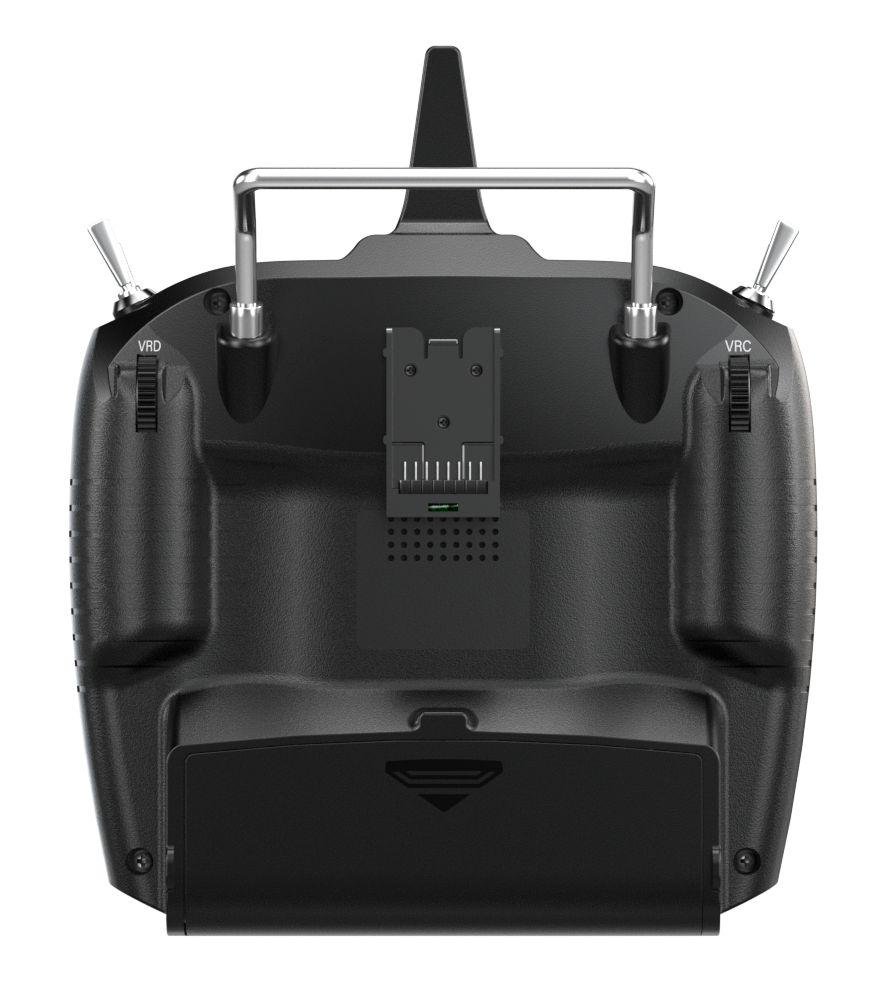

Battery Compartment

Long-range Model Bay

VR Knob

Type-C Port

Firmware Upgrade

Built-in Simulator

Trainer Function

Speaker (for Voice Broadcast)

Memory Expansion Port (comes with a 4G TF card)

Traditional Simulator Function

Traditional Trainer Function

Real-time Latitude and Longitude, Distance,

Heading, and Other Information Telemetry

The receiver has a built-in data transmission function*.

The remote control features a 2.8-inch color screen, displaying rich information such as the names of fishing spots, the power of the transmitter, receiver, and bait boat, the distance meter between the shore and fishing spots, and the number of GPS satellites received.

* The receiver can choose R16F. R16F has built-in data transmission functions. When connected to the flight control, they can send back information such as latitude and longitude, distance, number of satellites, heading, and other information in real-time.

①

②

③

⑤

④

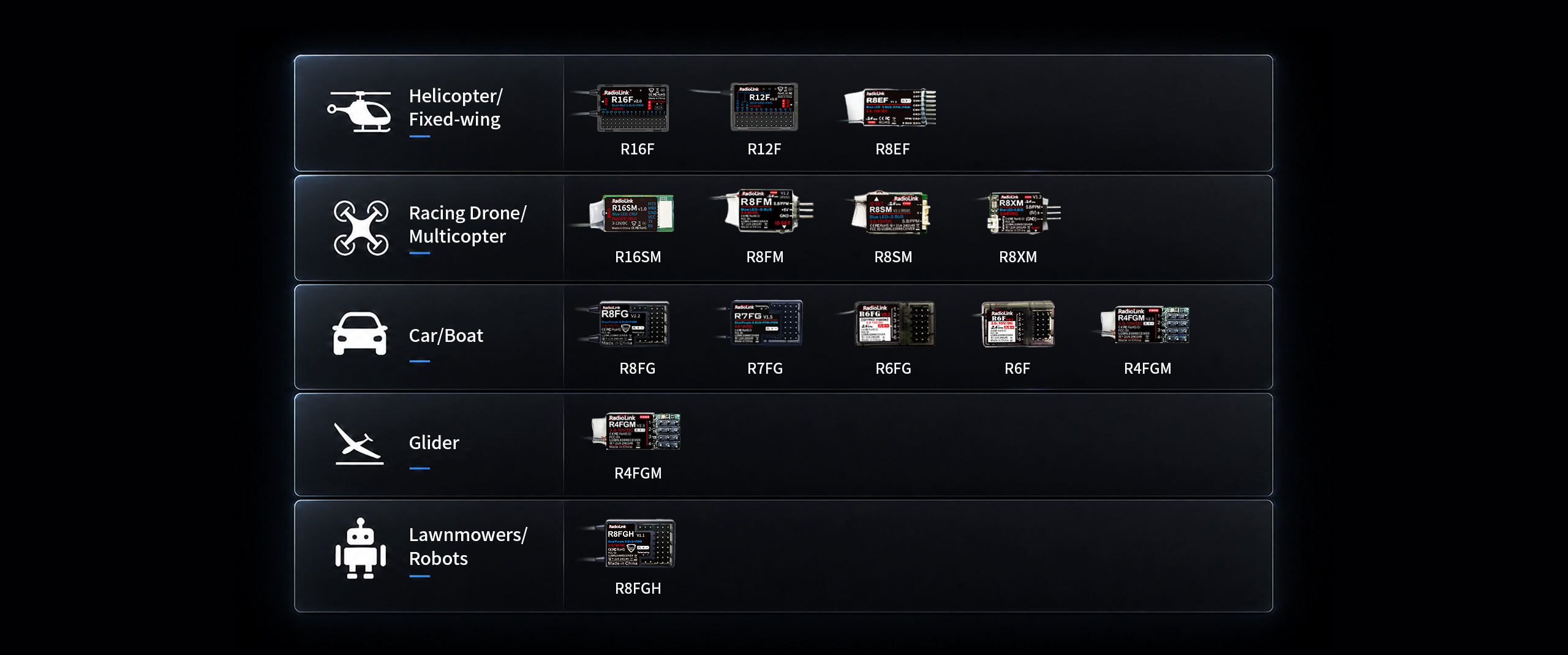

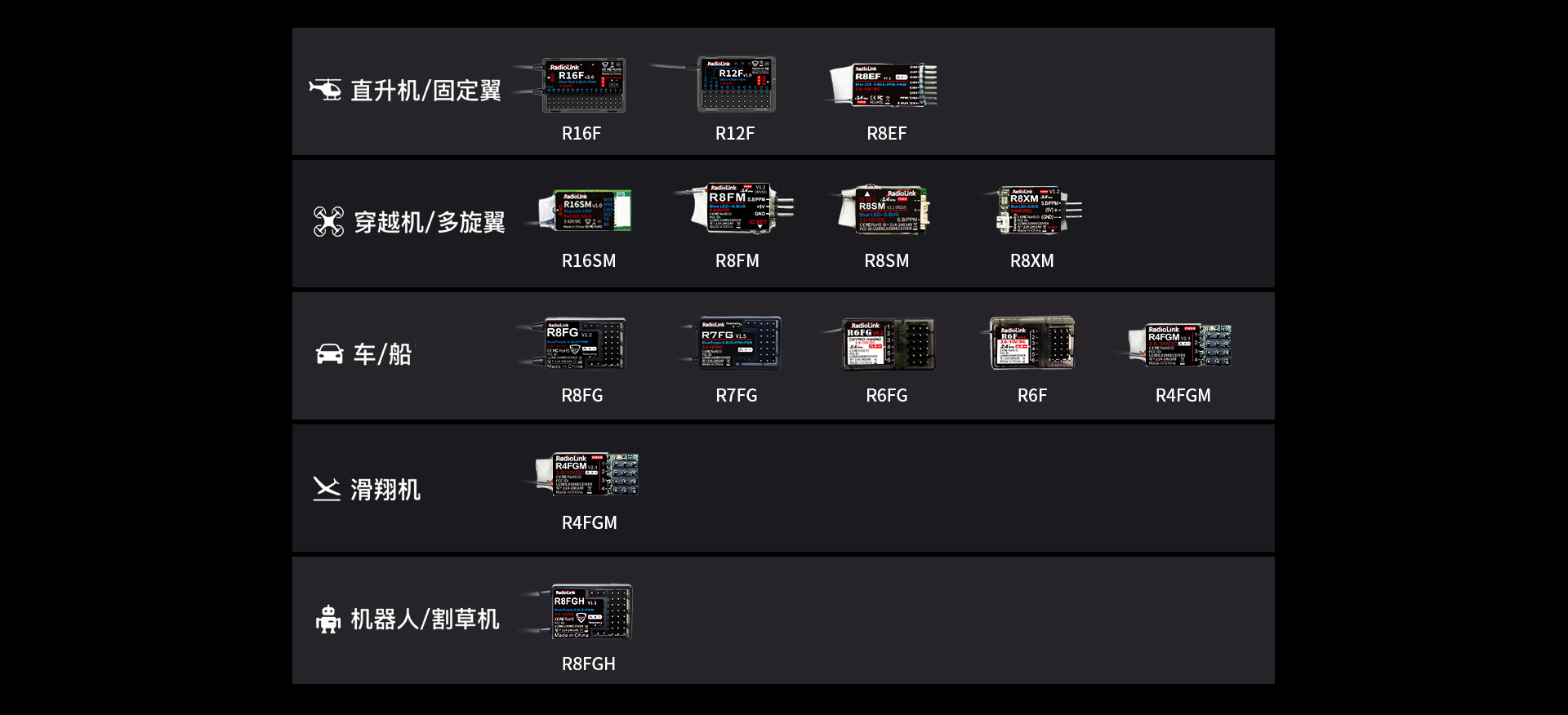

① Recommended Receiver Helicopter/Fixed-wing

② Racing Drone

③ Car/Boat

④ Glider

⑤ Robots/Lawnmowers

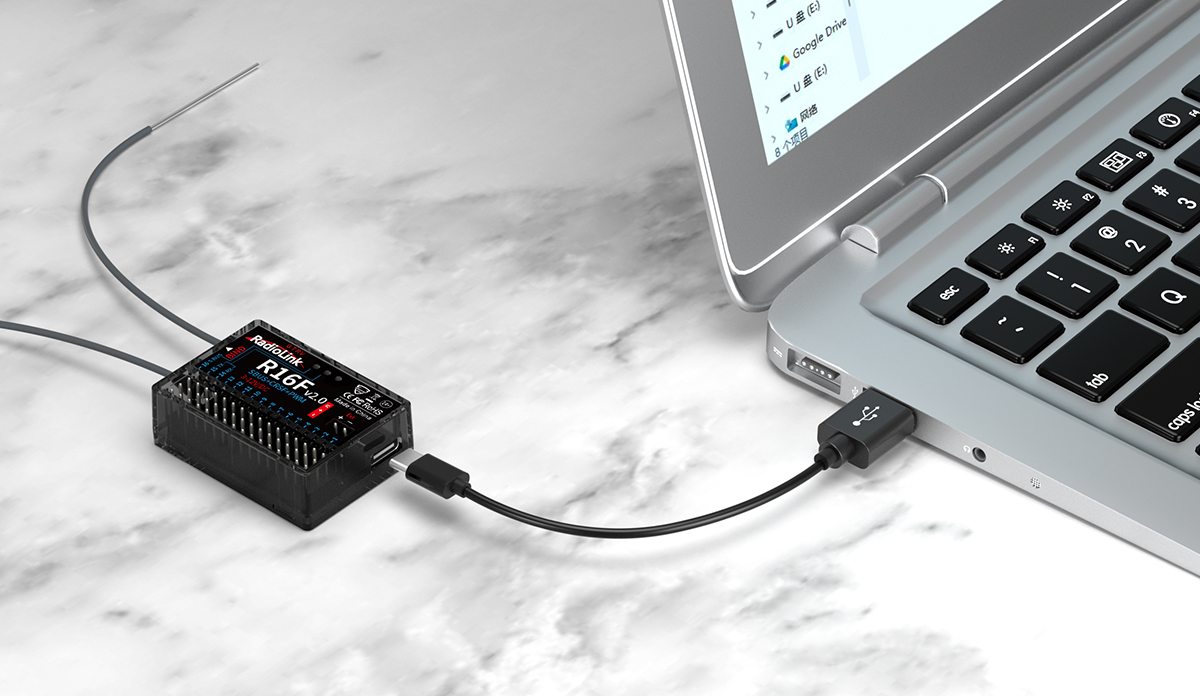

Receiver Supports Upgrade Online

A 16-channel receiver R16F

will come with the T16D.

With a Type-C cable

(for data transmission)

connecting the R16F to the computer,

the latest cutting-edge functions can be easily added without any extra device.

Real-time Latitude and Longitude, Distance, Heading, and Other Information Telemetry

The receiver has a built-in data transmission function*.

The remote control features a 2.8-inch color screen, displaying rich information such as the names of fishing spots, the power of the transmitter, receiver, and bait boat, the distance meter between the shore and fishing spots, and the number of GPS satellites received.

The receiver can choose R16F. R16F has built-in data transmission functions. When connected to the flight control, they can send back information such as latitude and longitude, distance, number of satellites, heading, and other information in real-time.

Navigation Reminder Parameter Setting Menu Humanized and Easy to Operate

The new navigation user reminder parameters setting menu is powerful and extremely easy to use.

The transmitter can be used quickly without an instruction manual. It is more user-friendly than AT9S.

Programmable Mix Control Cascade Function

All 16 channels can be programmed to any advanced setting*.

Multiple mixing controls can be cascaded infinitely to achieve one switch controlling any number of channels.

The T16D is the perfect choice whether for daily training equipment or use to compete with the world's top pilots.

Reverse Polarity Protection Circuit Multiple Power Supply Modes

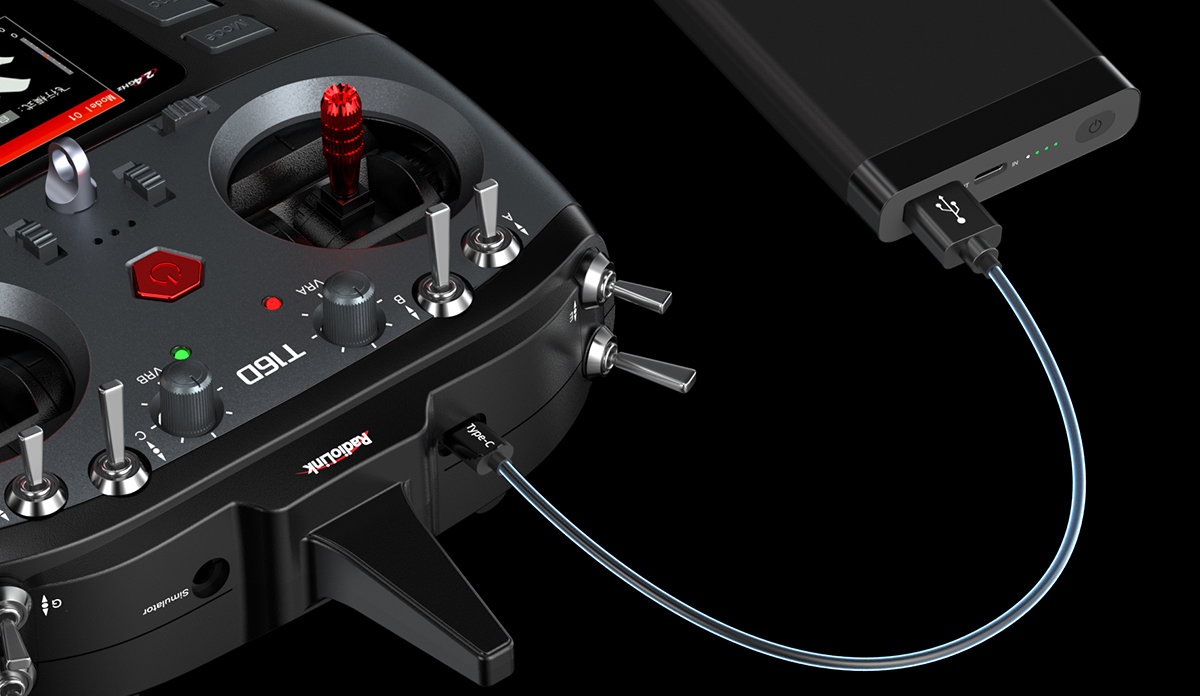

T16D is easily adapted for various battery layouts with wide operating voltage tolerance: 8 pieces of AA batteries, a 2S-4S LiPo or 18650 Lithium battery, or powered by a computer or mobile power bank connected via Type-C cable. Universal JST connector with the voltage protection software of Radiolink ensures vital components are protected from a reverse polarity connection.

Pay attention: if you use an 18650 Lithium to power T16D, please make sure the 18650 Lithium is with a JST connector and the dimension of the battery case is 114.4*35.4*32mm.

Output RSSI Value From Receiver To FPV Monitor Real-time RSSI Telemetry When Racing

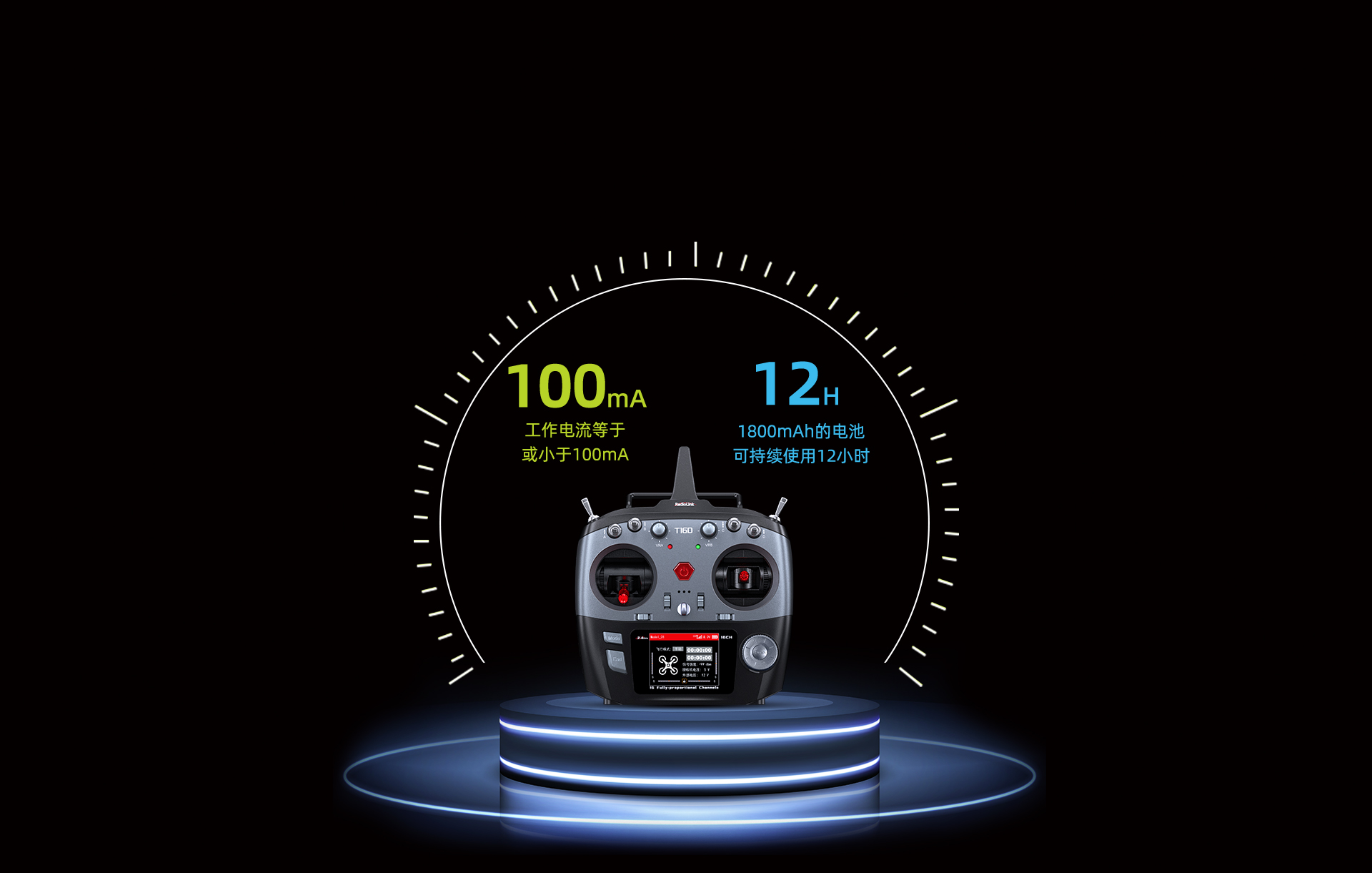

Power Supply Circuit Design

Provides Longer Battery Life

Switching Mode Power Supply (SMPS) makes the operating amperage of T16D only 100mA(±10mA)@8.4VDC, it consumes 50% less power than similar products. The transmitter can operate for twelve hours with an 1800mAh LiPo battery.

* How to output the RSSI value from the receiver to FPV when the transmitter is a T16D, T12D, T8FB, T8S, the flight controller is an F4, F7, F722, or F405?

* How to output the RSSI value from the receiver to FPV when the transmitter is a T16D, T12D, T8FB, T8S, the flight controller is a PIX6, PIXHAWK, CrossFlight-CE, CrossFlight, CrossRace Pro, CrossRace, Mini Pix？

User-Centered Design

Radiolink has always cared about the user experience. With more than 21 years of independent Research and Development, Radiolink has accumulated rich product knowledge and technical reserves. Continuous software upgrades have allowed old products such as AT9,

and RC3S owners to enjoy cutting-edge

technologies and functions.
