T8S 8 channels transmitter for racing drone, fixed wing, helicopter, glider, cars and boats

T8S(BT)

8 channels

Handle Remote Controller

Compatible with R 8EF, R8FM, R8SM, R8XM, R8FG, R8F, R7FG, R6FG, R6F, R4FGM, R4F

2KM Control Distance

T8S(BT), with the same FHSS algorithm of AT9S Pro and 67 channels pseudo-random frequency sequence hopping, the chip TI CC2500(same as the Open TX Frsky X9D) and the transmission rate (which three times faster than Open TX), achieving the better anti-interference ability to both the same frequency band and different frequency bands.

The control distance of T8S(BT) is 2000 meters(1.24Miles) in air.

Long Flight Time

The brand new hardware design of T8S has super low battery consumption of 150mA.

Total flight time lasts 5 hours long when battery is fully charged.

Mission Planner

0.5us Gimbal Precision

The optimal design of the PCB layout ensures maximum PWM jitter of 1.84us with a standard of just 0.5us. It is 14 times better than regular jitter 7us of the mainstream 16-channel transmitter in the market. The same joysticks components as AT9S Pro.

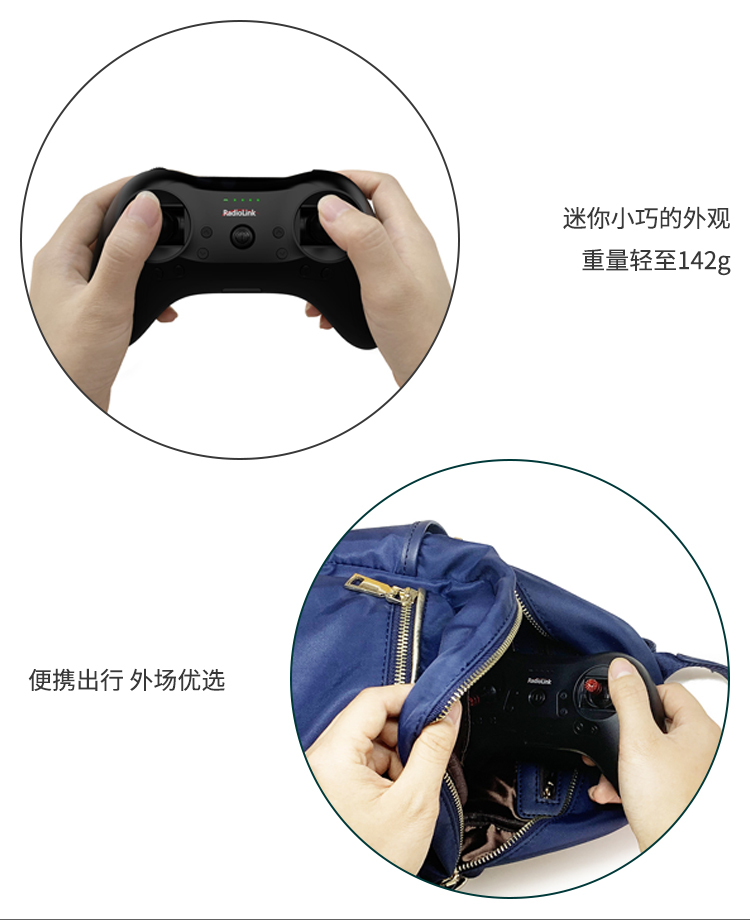

Ergonomics Design

Perfect ergonomics design with the small size and moderate weight and

the removable joysticks personalized to players’ hands and control habits make the long flight more pleasant.

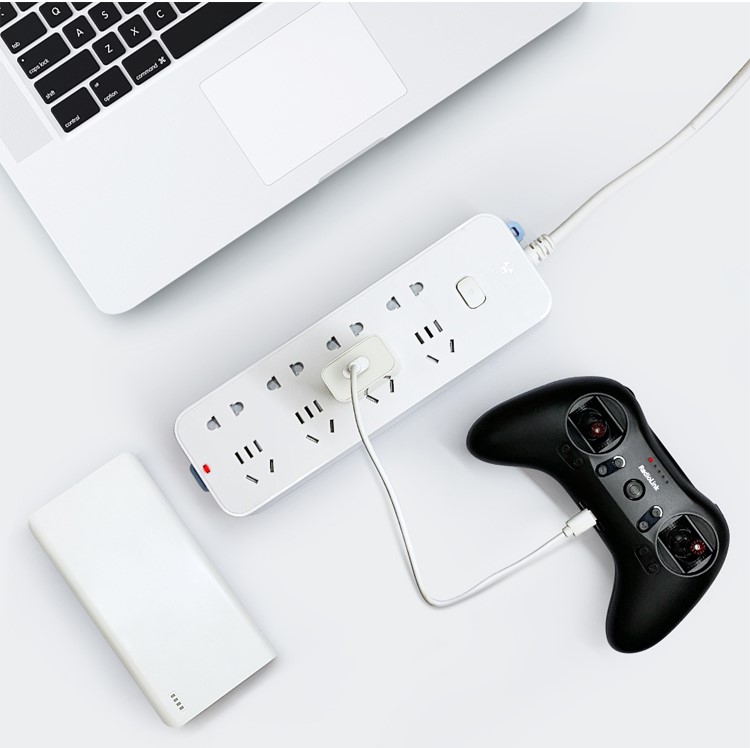

USB Charging

The built-in 1S 900mAh lithium battery can be directly charged by a computer or mobile charger with a USB cable.

When the voltage is less than 3.7V, the green battery indicator will flash with Dee sound as an alarm.

Battery Indicator

Aileron/Elevator Stick

Power Button

Trimmer Buttons

Programmable Mix Control

Channels five through eight can be programmed to any advanced setting

Flight modes are set with the two 3-way switches in the flight controller PIX by default.

Even beginners can enjoy T8S without a manual.

Mode 2

Throttle/Rudder Stick

Three-way switch (SWA)

(Flight mode switch)

Three-way switch (SWB)

(Flight mode switch)

Knob-switch (VRA)

(PTZ Adjustment)

Push-button(VRB)

(Camera shutter)

APP Parameter Setup, USB Upgrade

Parameters can be easily set up and modified with an android or iOS mobile APP connected via Bluetooth.

USB upgrades with new functions added and keeps T8S always advanced.

Countless sets of model data can be stored.

* Mobile APP is Android and iOS supported. Displayed language is depend on your mobile language.

* Firmware upgrade and parameter setup computer APP are only available to systems of WIN7/WIN8/WIN10/XP.

* Unlimited models can be storage.

① Parameters setup by Android or iOS mobilephone APP

② Parameters setup by computer APP

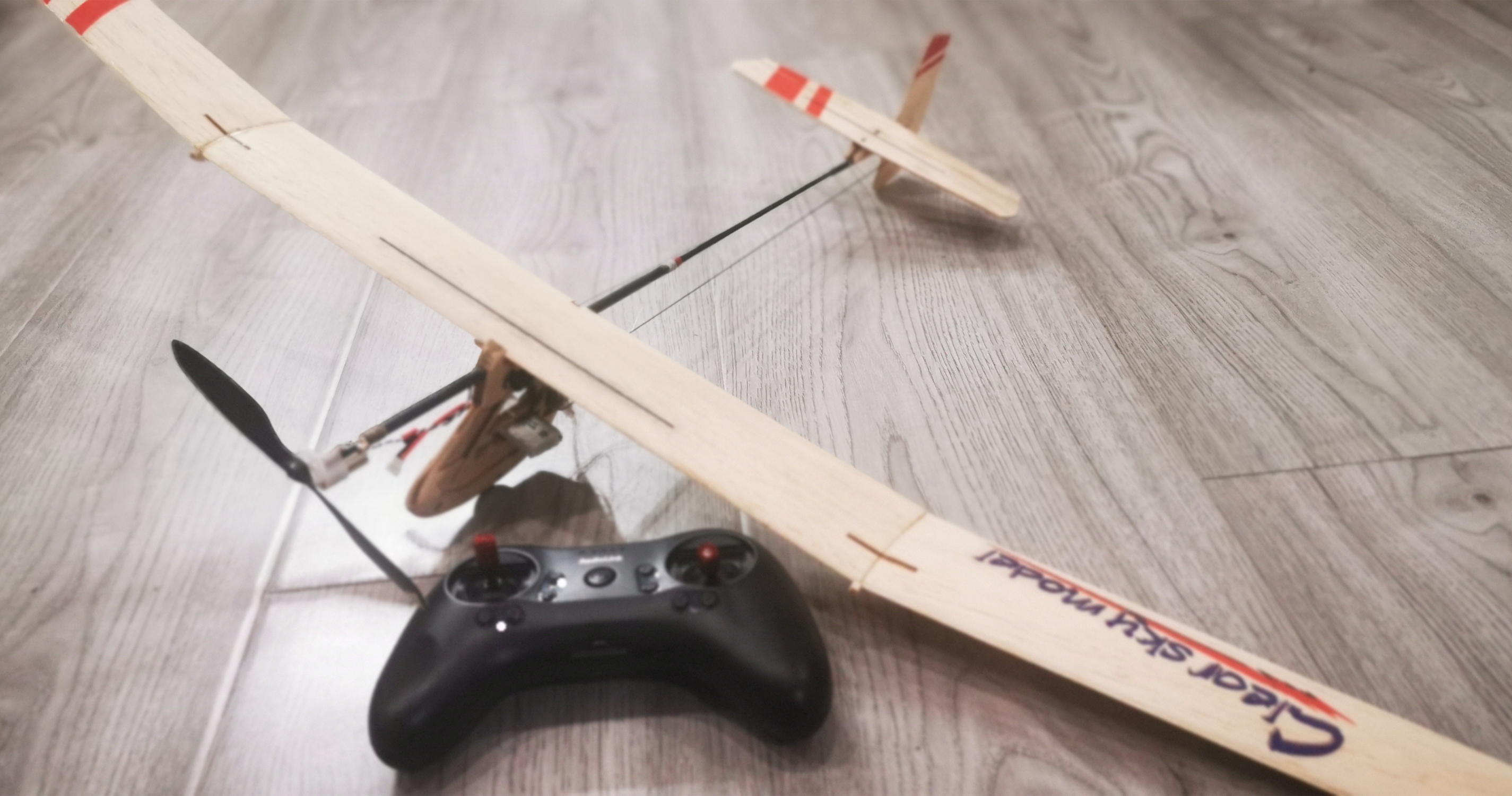

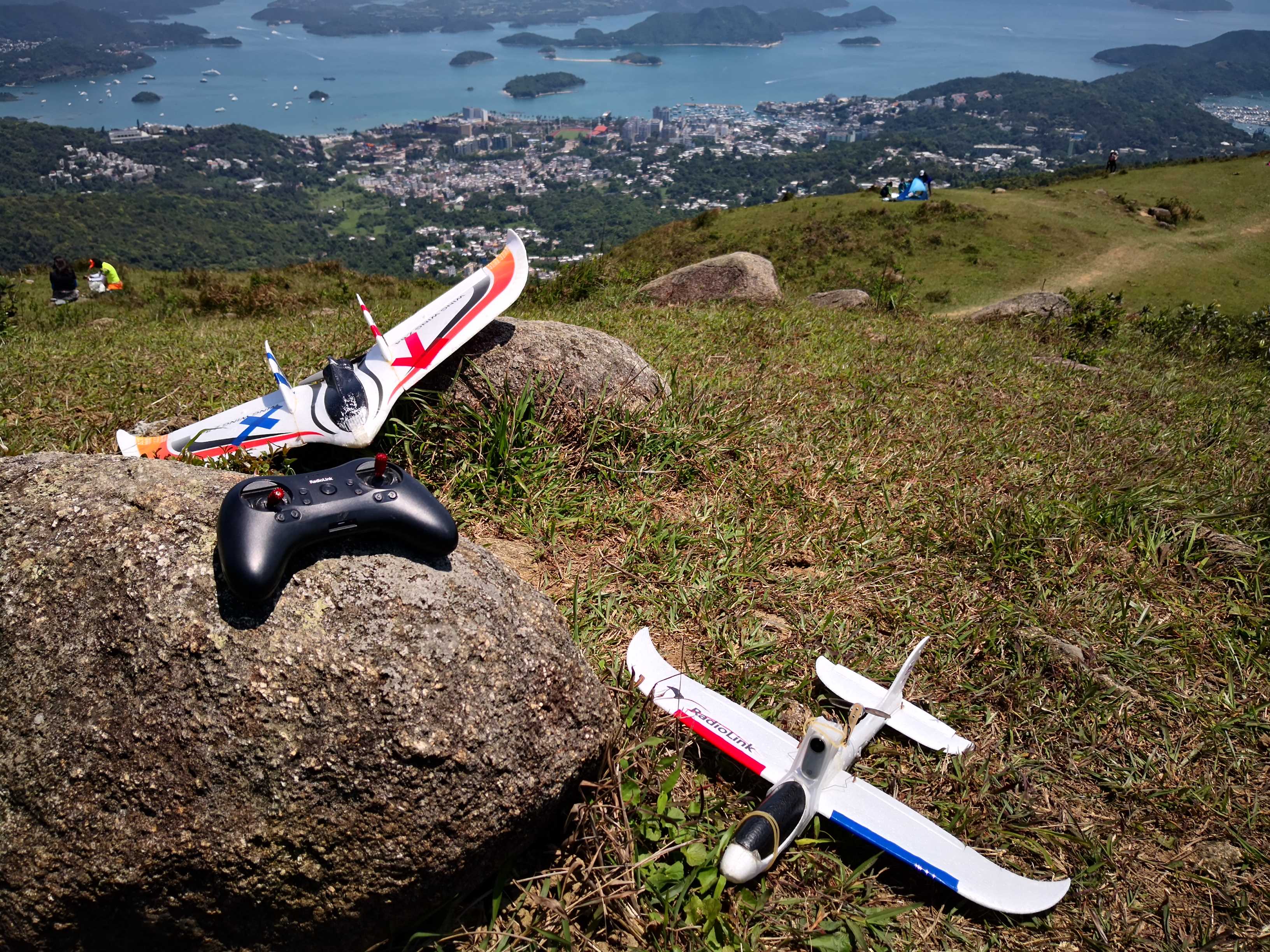

Adapts to Multiple Models

Adaptable models include Fixed Wing, Glider, Multicopter, Car, Boat, and Robot.

Transmitter automatically switches layout depending on the selected mode.

The receiver with 21cm (8.27”) antenna is also perfect for easy RC boat control.

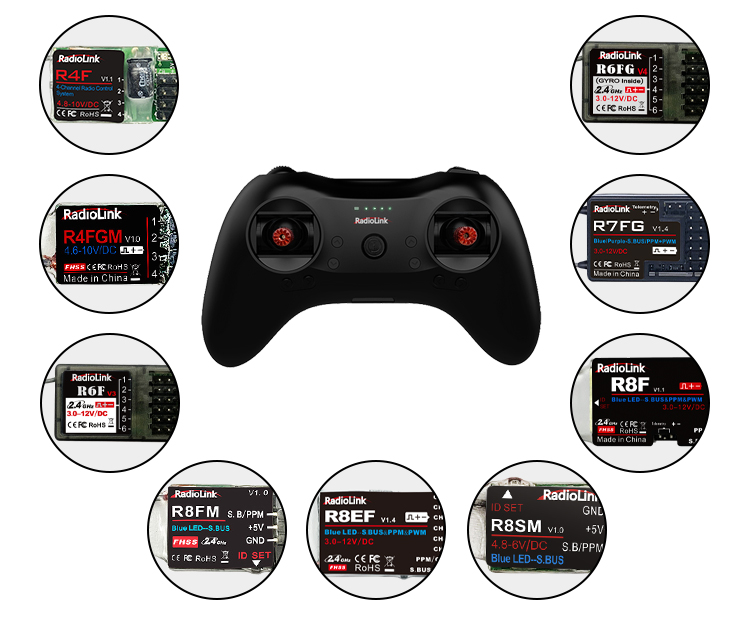

Compatible with Multiple Receivers

SBUS/PPM/PWM Supported

Standard receiver R8EF supports SBUS, PPM, and PWM signals output, no need for extra cables or any signal converter, reducing the weight of aircraft.

When outputting the SBUS and PPM signals, channel 3 to 8 can also output corresponding PWM signal at the same time and work with the T8S turn switch to control PTZ and landing gear. With the T8S in hand to have all functions, R/C fans can fully enjoy with fun!

APP Param. Setup

8CH Complete Function

FHSS 67CH Pseudo-Random

Frequency Hopping

2KM Control Distance

Support Mini Receiver with

Real-time Built-In Telemetry

USB Charging

SBUS/PPM/PWM

USB Upgrade and Data Copy

T8S(BT) Package List

Transmitter*1
Receiver*1
USB Cable(upgrade/charge)*1
Hook and Spring*1
User Manual*1
Packing Box*1

Four Programmable Mixing Function

Five to eight channels can be programmed to any advanced setting.

Default mix function such as aileron mix with elevator or flap mix with aileron for Fixed Wings or V-Shaped tail models.

Four programmable mixing function and unlimited models storage make T8S perfect compatible with most kind of cars or boat such as Engineering Truck or dual-motor bait boat.
