· 5 Channels for Cars, Boats, Lifebuoy, Tracked Robots

· 400 Meters Control Distance

· 30 Models Storage, Cruise Control System

· Gyro Integrated and HV Servo Supported

· A switch can be set to active D/R

· Timer and Dual Mix Programmable Function

· Support Telemetry of Maximum 8S Model Battery Voltage

Compatible with R7FG, R8FG, R8EF, R8F, R6FG, R6F, R4FGM, R4F

5 Channels

Dual Mix Programmable

Gyro Integrated

400 Meters Control Distance

30 Models Storage

Antiplug Protection

Support Real-time Telemetry

400 Meters Ground Distance

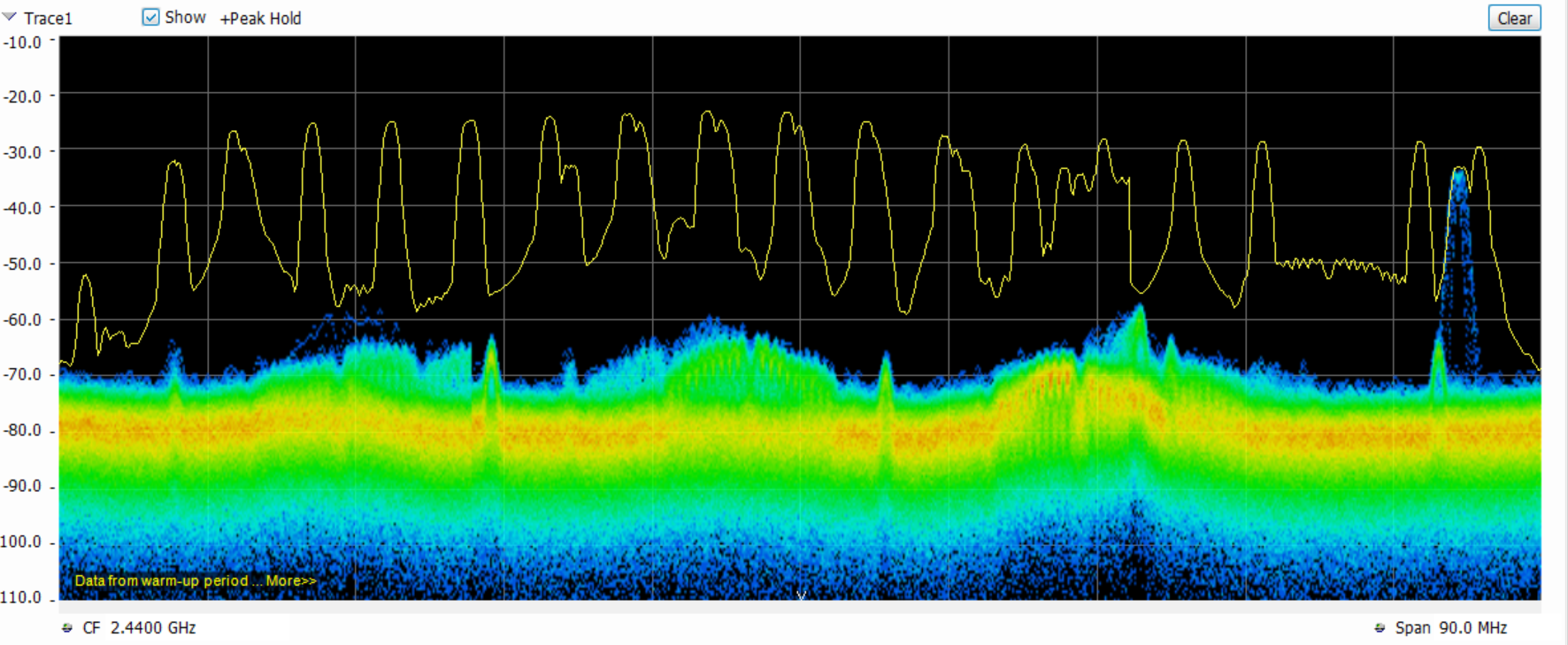

With the same FHSS spread spectrum of AT9S Pro and 67 channels, pseudo-random frequency hopping makes RC4GS V3 have the superior anti-interference ability both at the same frequency band and different frequency bands.

With the transmitter chip of ARM M4 and the receiver chip as the industrial 32bits ARM Cortex M0, ensuring the superior ability of anti-sparks interference even enjoy with an oil tanker.

The control distance is up to 400 meters.

Timer Function

The timer function of the RC4GS V3 allows you to grasp the lap and complete track results in time to help you train yourself before the race.

5 Channels for Multiple Types of Models

RC4GS V3 is an ideal partner for all types RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting RC Car, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car, GP RC Car, EP RC Car, Sailboats, Trimaran, Bait Boat, Remote Controlled Lifebuoy, and other types of RC cars or boats.

JST connector

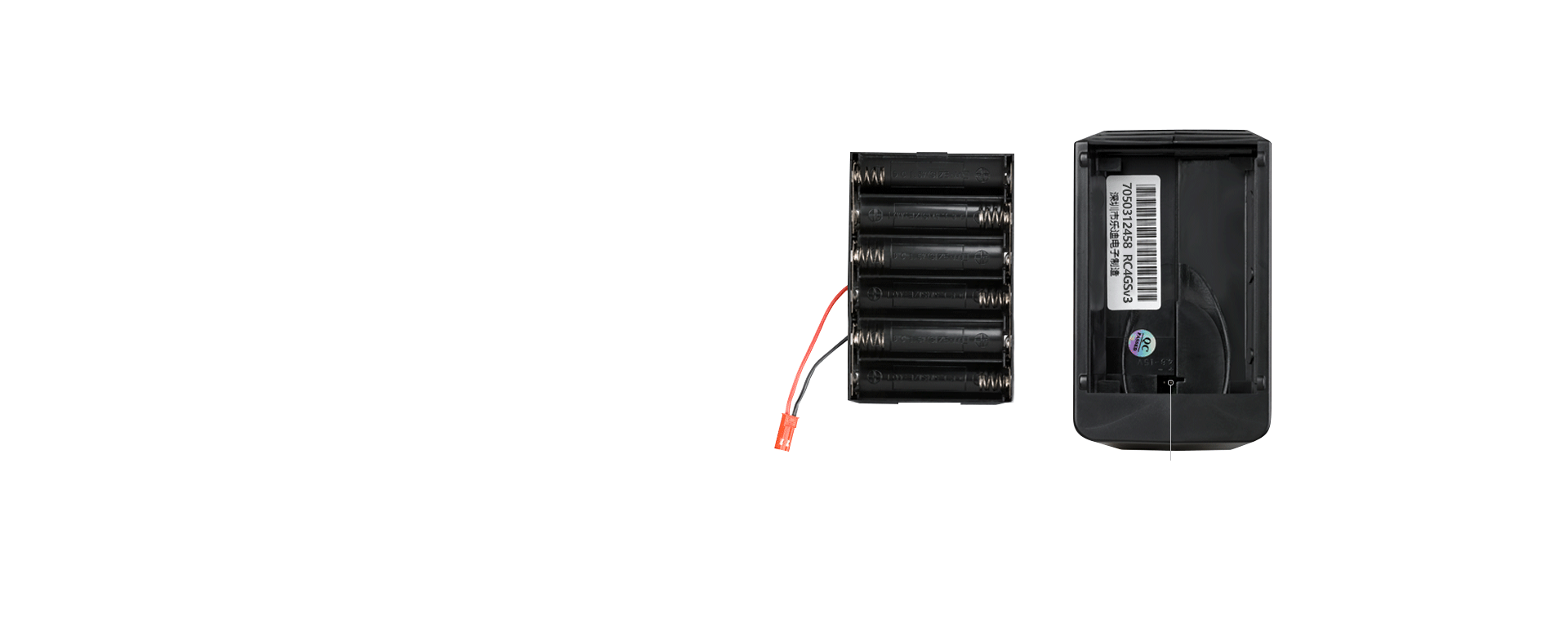

Dimension of battery case: 89*59*25mm (3.5” *2.32” *0.98”)

Reverse Polarity Protection Circuit

RC4GS V3 is easily adapted for various battery layouts with wide operating voltage tolerance: 6pcs of AA batteries or 2S-4S LiPo or 18650 Lithium battery.

Universal JST connector with the voltage protection software of Radiolink ensures vital components are protected from a reverse polarity connection.

89mm

59mm

Pay attention: if you use a 18650 Lithium to power for RC4GS V3, please make sure the 18650 Lithium is with a JST connector and the dimension of the battery case is 89*59*25mm (3.5” *2.32” *0.98”).

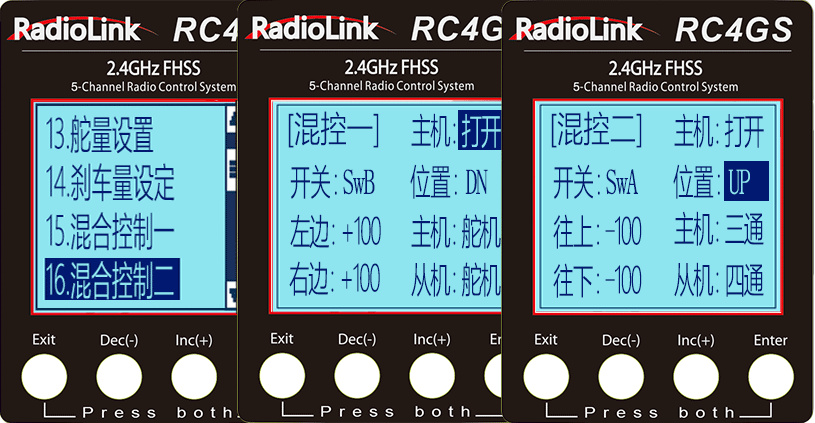

Dual Programmable Mix Control

5 channels transmitter. CH1 is the rudder, CH2 is the throttle, CH3 to CH5 can be programmed.

Arbitrary 2 channels can be easily set as mix control, easy to understand.

For Timber Truck: dual programmable mix control makes front wheel mix with rear-wheel come true, which can reduce the turning radius.

Performance Upgrade: Ergonomically Designed for Hours of Fun

Base on the feedback of hundreds of experienced RC racers, we redesigned the throttle trigger, the thickness of the grip,

and the location of each switch to achieve a better comfortable driving experience.

Rational throttle trigger length and tension, make easy and accurate for throttle adjustment.

Threaded design helps antiskid when the drivers at the long-time practice or in hot weather.

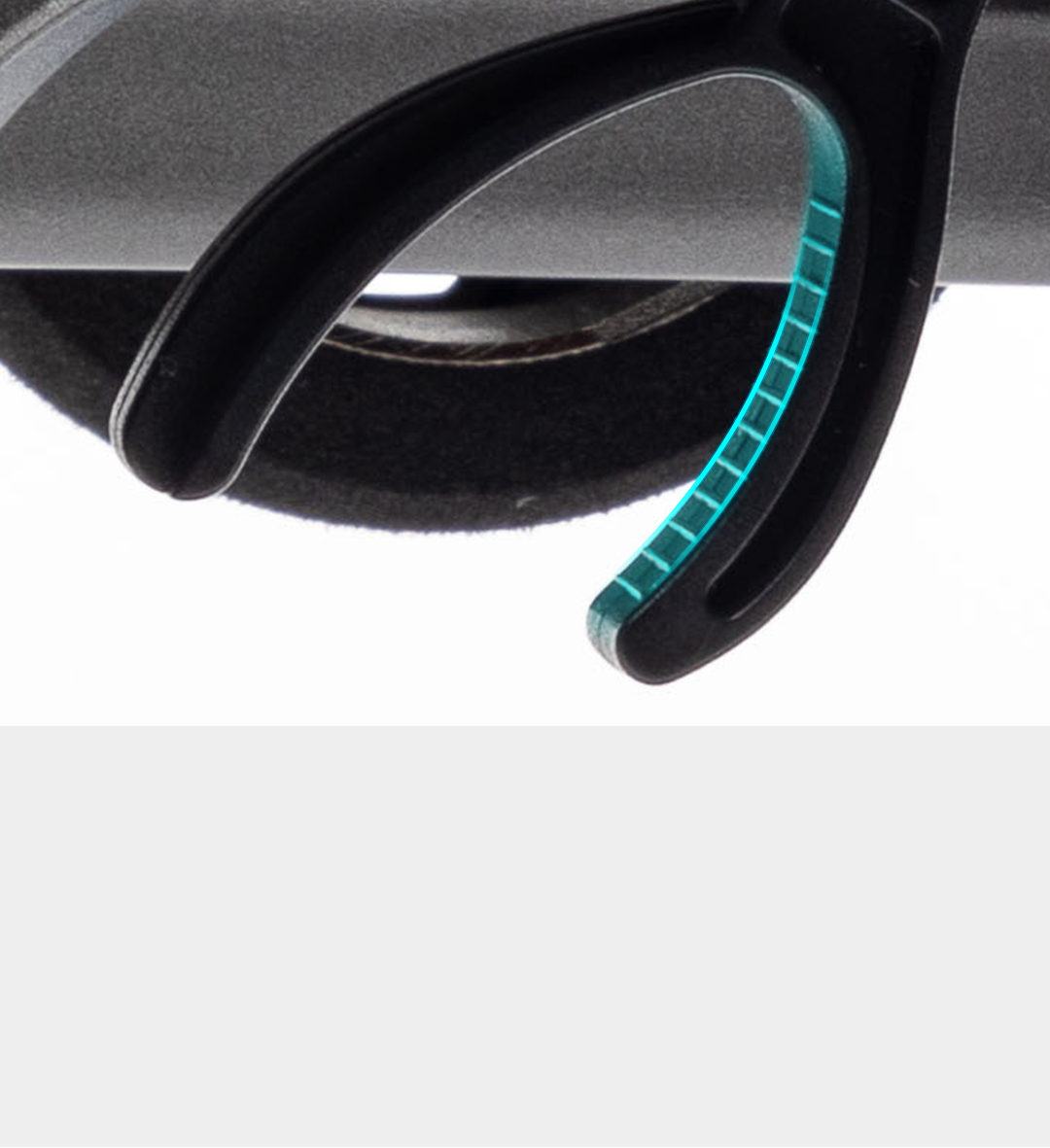

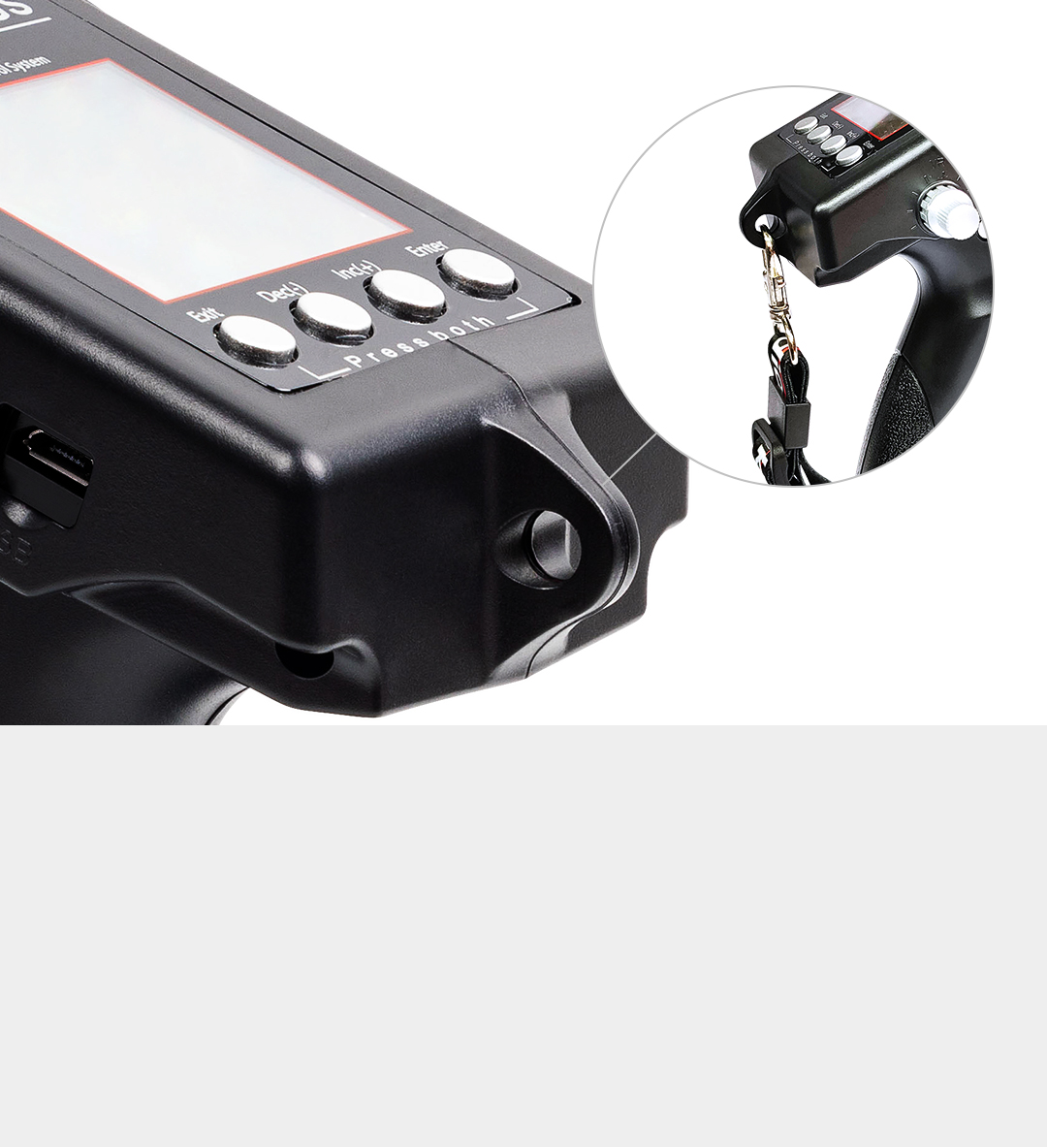

A lanyard will make the suitable weight to highly compatible with drivers control habits make the long drive more pleasant.

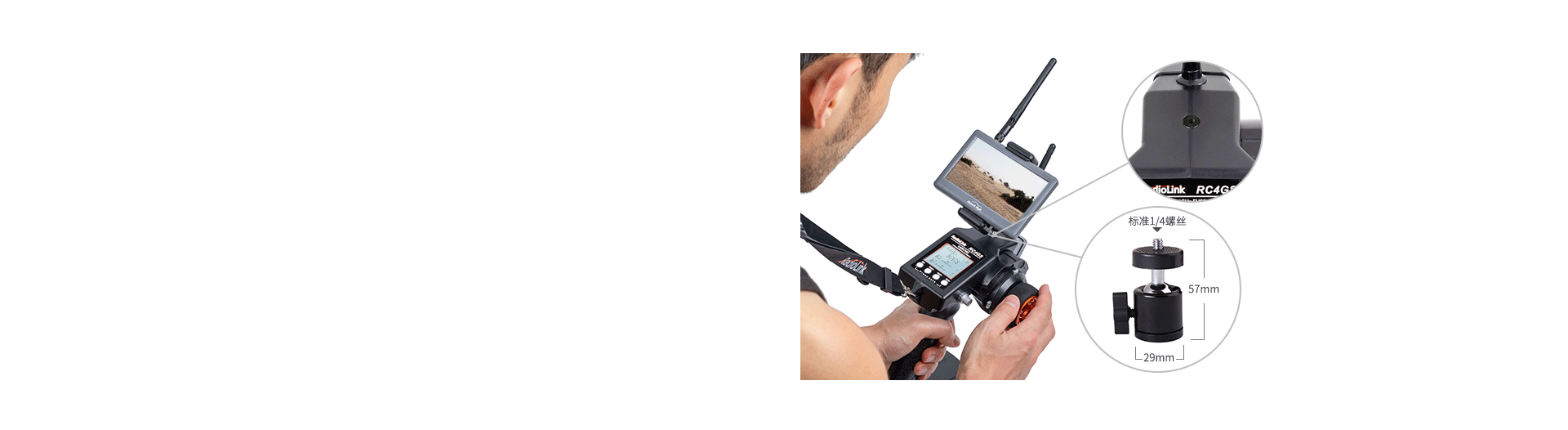

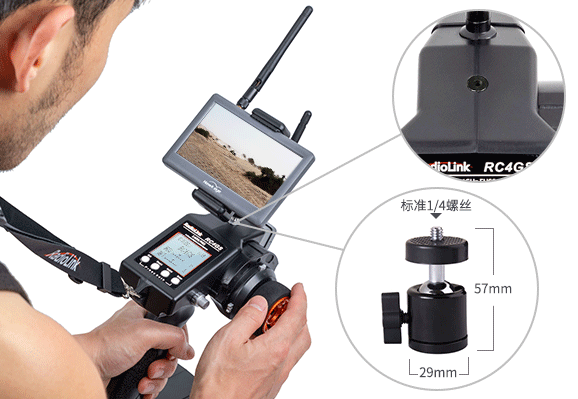

FPV display holder design helps the drivers enjoy the fun of driving.

An aperture of FPV display holder:

M6 thread (1/4 thread) (English screw)

User-friendly design for each operation and handling.

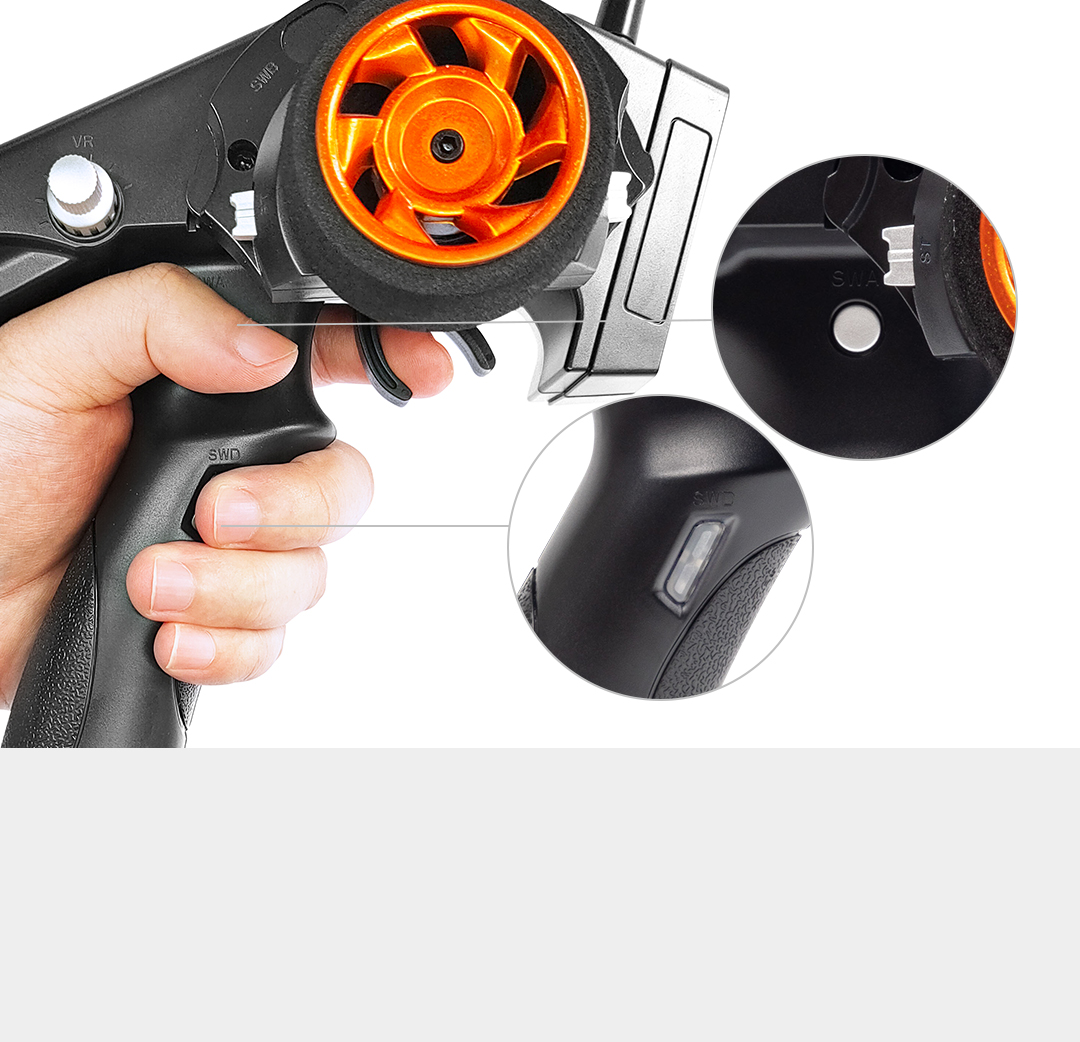

Various styles switch for easy recognition and usage.

Receiver with Gyro Integrated

Customizable Gyro Sensitivity

Standard receiver R6FG packed is the receiver with built-in gyro and supports high voltage servo.

It is anti-slip and keeps the uni-direction. With the integrated gyro in R6FG installed, the vehicle turns more smoothly, and drifting from high speed can be prevented.

The easy setting ensures better control of gyro stabilization.

Gyro sensitivity can be adjusted by STD or CH3 which is controlled by VR switch by default to maximize or minimize the gyro function.

Wide Compatible

RC4GS V3 is packing with a receiver R6FG.

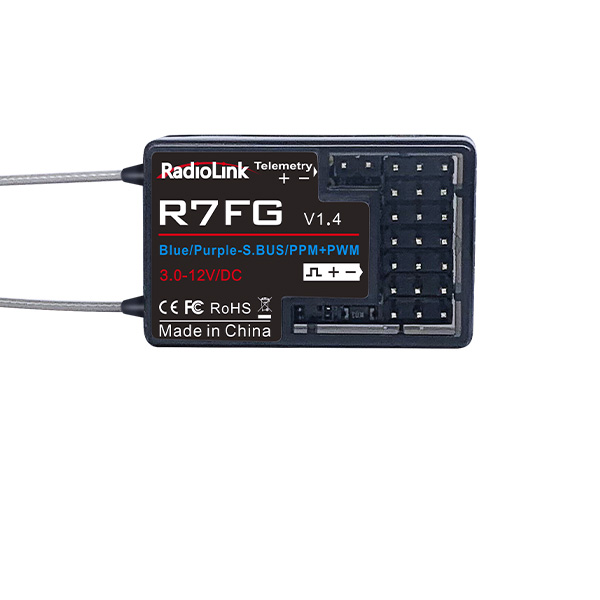

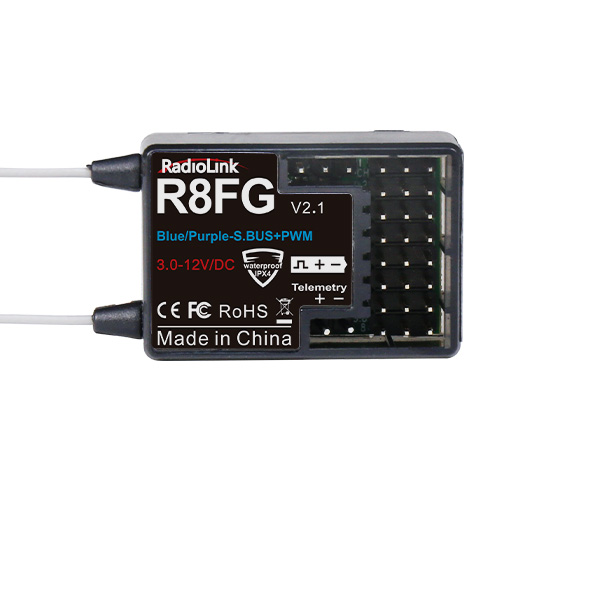

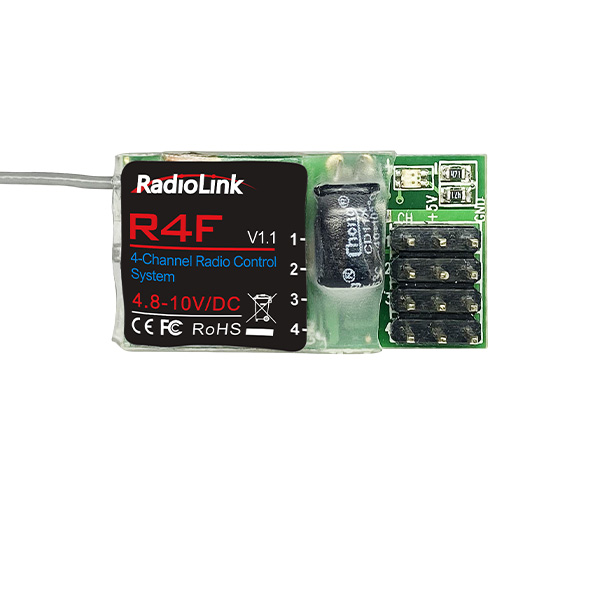

RC4GS V3 is also compatible with the 4 channels mini receivers R4FGM/R4F designed for Mini RC cars, the 6 channels receivers R6F, the 7 channels receiver with gyro built-in, high voltage servo support, and model voltage telemetry support R7FG, and the 8 channels long control distance receivers R8EF/R8F, which designed for RC boats.

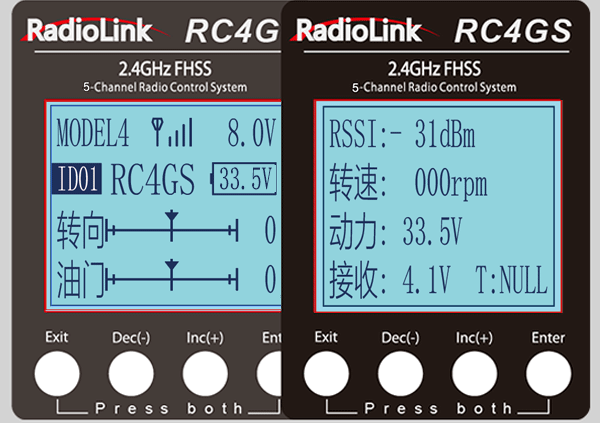

Real-time Telemetry of Model Battery Voltage

Telemetry is capable of RSSI, receiver, and model battery voltage.

RSSI and receiver voltage data will display once binding complete.

The model voltage will display by connecting the wire to the ESC, battery,

and Telemetry port if the receiver is R7FG or R8F, no extra module needed.

Telemetry of maximum 8S (33.6V) battery supported.

19 Years of Research and Development Experiences

Do What You Need

Maintain continuous research and development according to users’ feedback, and constantly improve and add new functions required by users, do what users need.

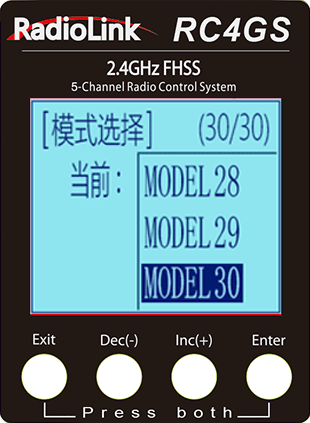

Onboard Memory for 30 Models

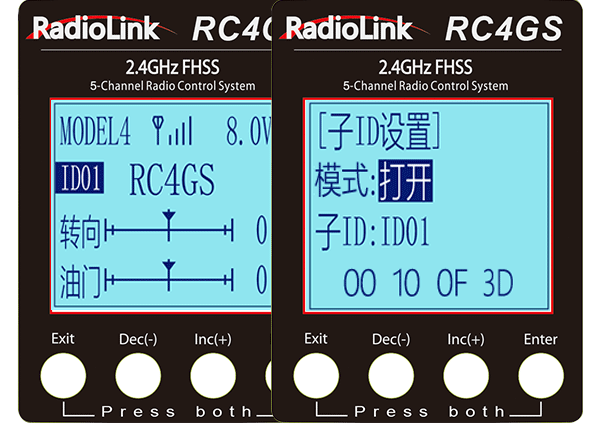

Subsidiary ID

RC4GS V3 is capable of an arbitrary ID designation among a maximum of 10 binding receivers, making long-distance rescue of RC cars or boats achievable.

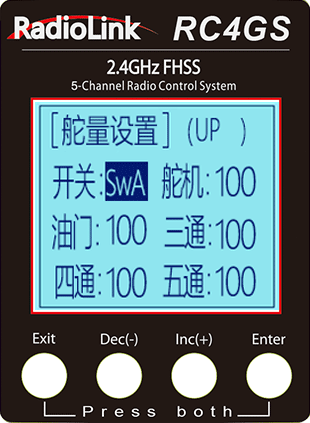

A switch can be set to active D/R

A switch/button can be set to operate D/R during the maneuvering of the car, it helps drivers quickly switch D/R during the 4-wheel drive session without having to go to LCD to press through all the menu each time.

Multiple Function for DSC Port

The DSC port of RC4GS V3 can set as the Simulator Function(support VRC Pro，CarX, Assetto Corsa Competizione, and etc. simulators),  or set as TBS Crossfire Function(by connect the TBS Crossfire to the DSC port).

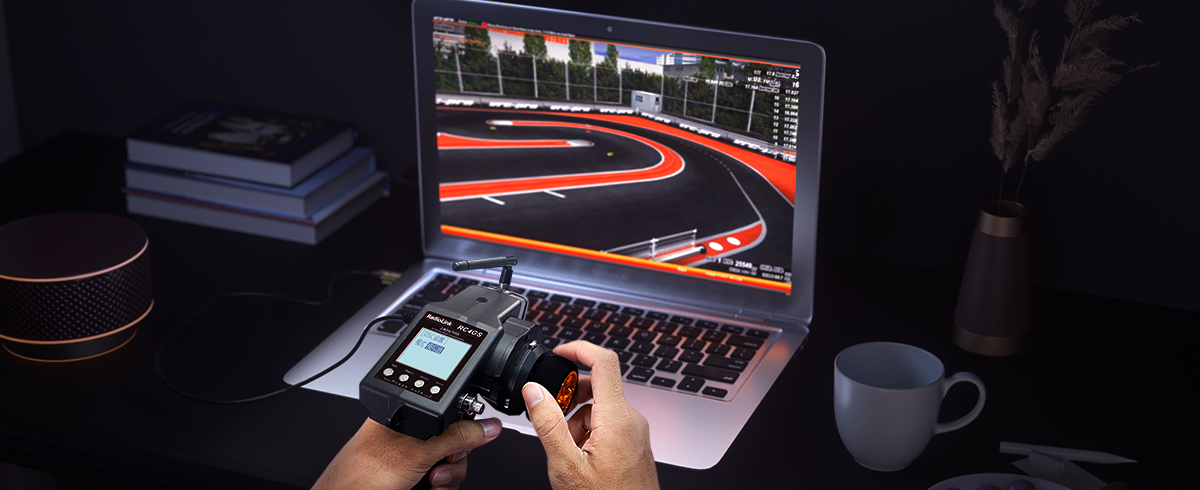

Simulator Function

TBS Crossfire Function

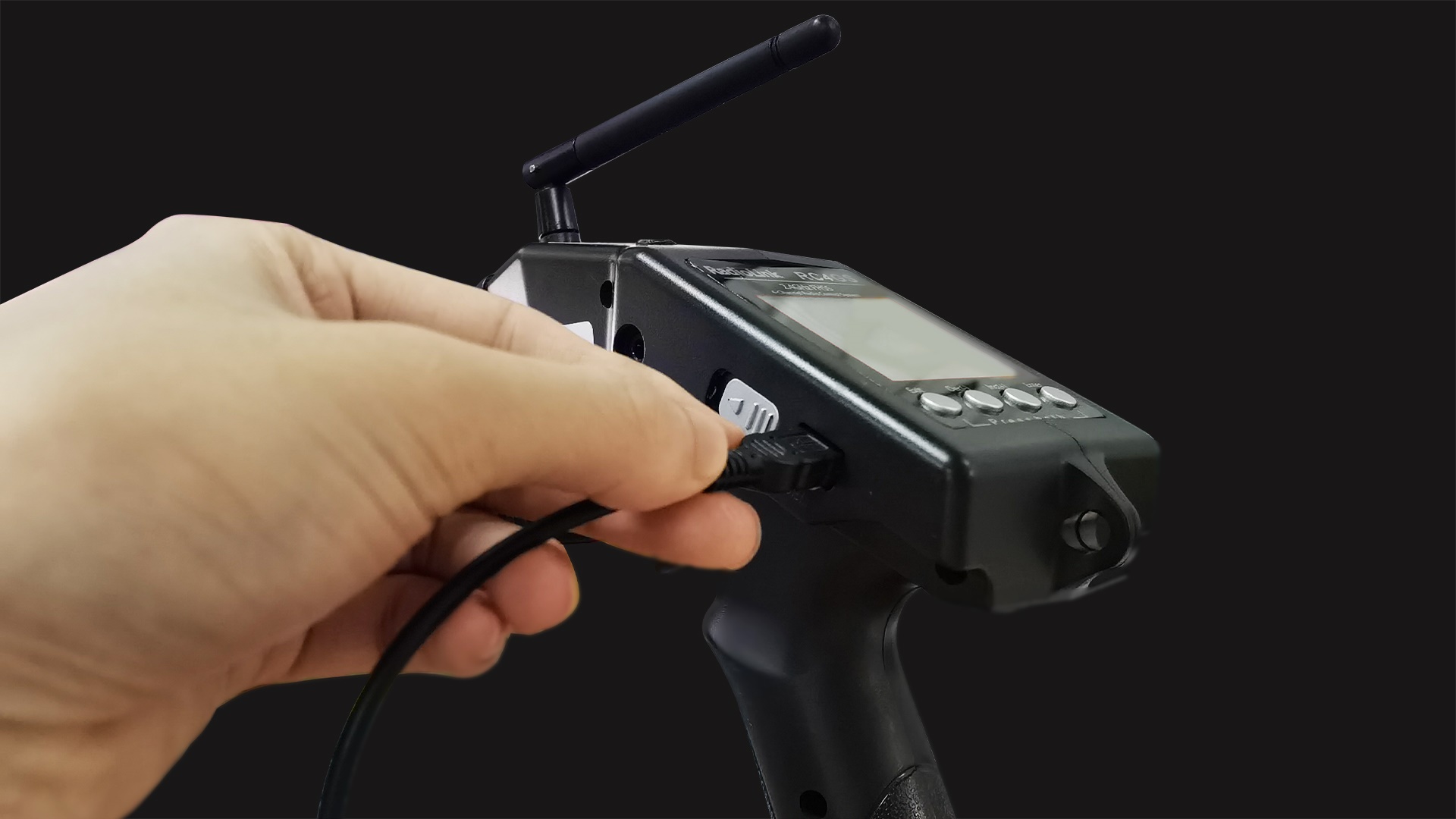

USB Upgrade

The RC4GS V3 is easily updating by the computer via a USB cable.

Intuitive software hint guides you through the process.

Note: The USB port only for upgrade, do not use it for charge.

RC4GS V3 Package List

Transmitter x1

Packing Box x1

Receiver x1

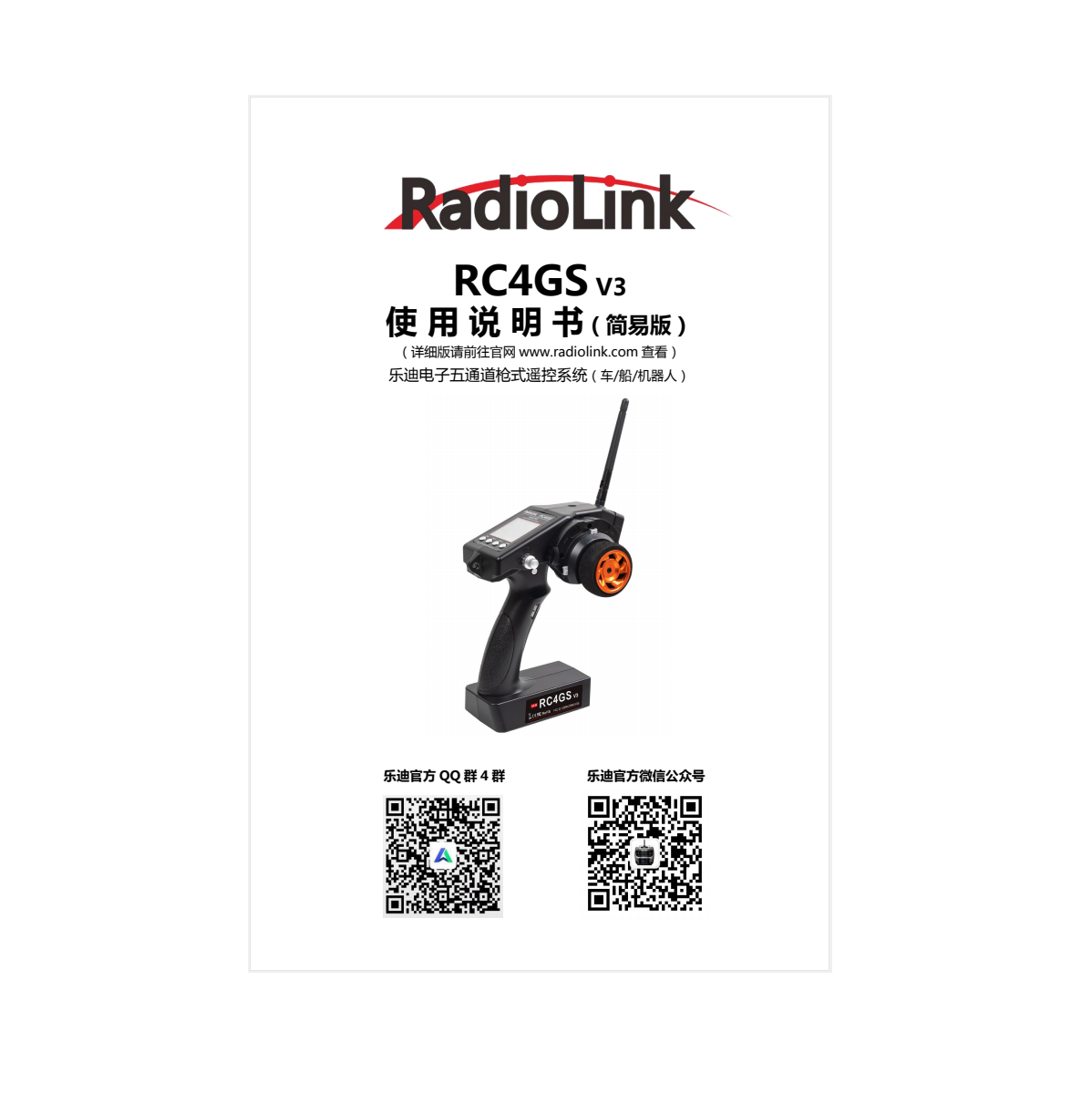

Instruction Manual x1
