Transeiver with 60° Beam Angle and Zero Fade Area

0.4cm Detecting Precision, Accurate Obstacle Avoidance without Delay

SUI04

Ultrasonic Sensor of Overall Obstacle Avoidance

Adaptable to Multirotor

Technology of Hardware and Software Dual Filters,

30ms Extreme Fast Response

Obstacle Avoidance

(right)

I2C Expansion Board

Obstacle Avoidance

(forward)

Obstacle Avoidance

(left)

Obstacle Avoidance

(downward)

Obstacle Avoidance

(backward)

Obstacle Avoidance

(upward)

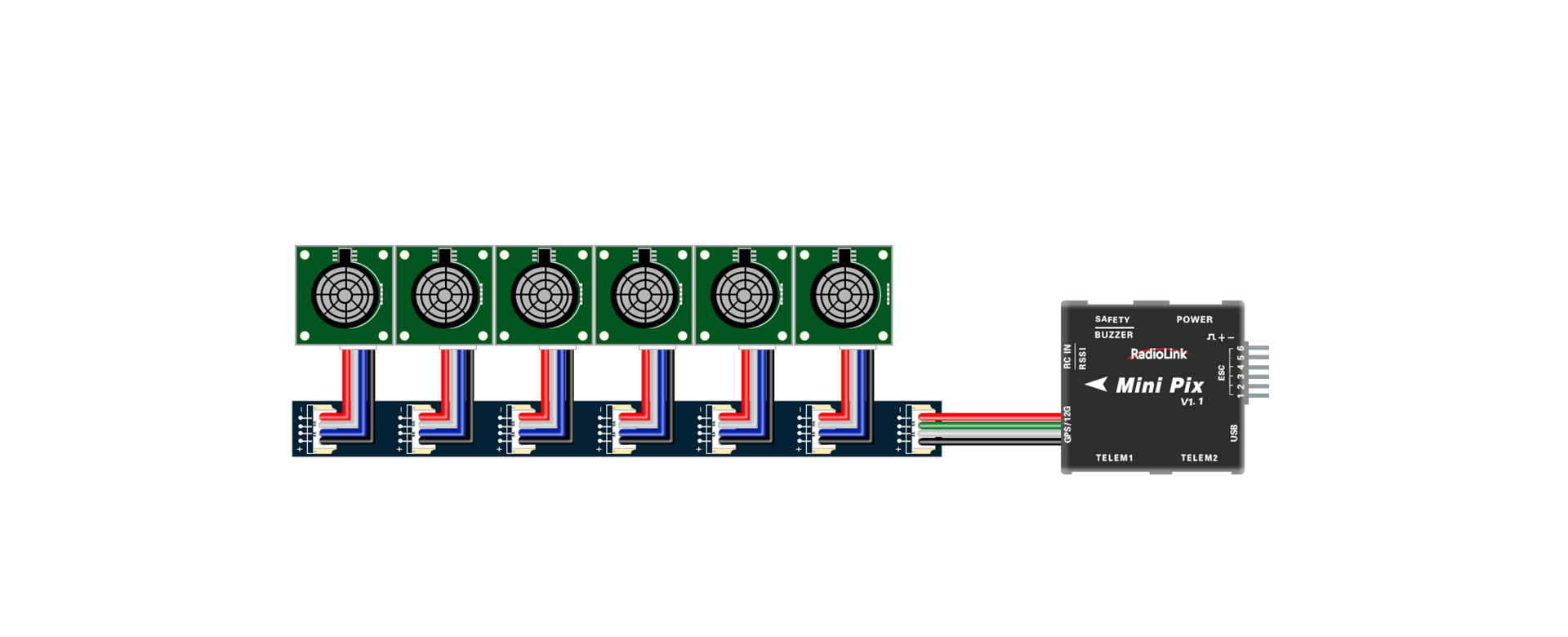

Mini Pix Connection

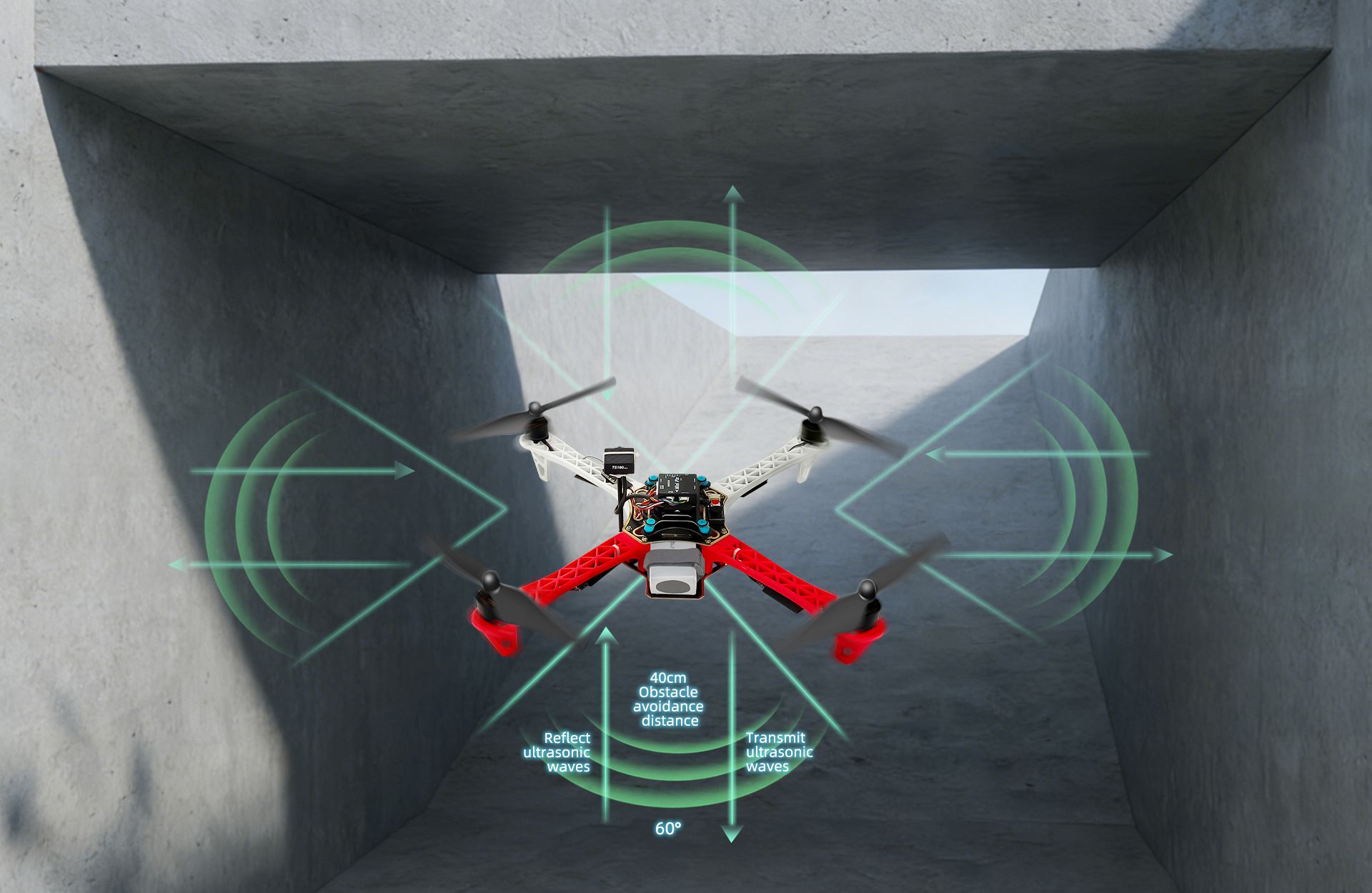

60° beam angle ensures environment detection and obstacle sensing in real-time. Connect SUI04 with RadioLink flight controllers PIXHAWK, Mini Pix, or TURBO PiX via the I2C expansion board to realize obstacle avoidance in 6 directions* synchronously to guarantee a safer flight.

60° Beam Angle, Overall Synchronous Avoidance

60° beam angle

High Precision of 0.4cm

With 0.4cm detecting accuracy and zero fade area, SUI04 can quickly spot barriers.

Safety Guaranteed for Outdoors Operation and Training

Before using the overall obstacle avoidance function of SUI04, the flight controller’s firmware to the Copter V3.5.7  version should be upgraded, and the firmware designed for the Obstacle Avoidance Function can be downloaded here: https://www.radiolink.com/sui04_firmware

30ms Extremely Fast Response

With the integrated 32-bit processor and a breakthrough of hardware and software dual filters technology adopted, SUI04 ensures accuracy and realizes the 30ms fast response, solving the common delay problem of other products. This function is helpful for flight operations such as agricultural drones, detecting the height in real-time and feedback in time when there are obstacles and protecting both operator and drone.

 Compatible with RadioLink flight controller PIXHAWK, Mini Pix, and TURBO PiX. Before using the overall obstacle avoidance function of SUI04, the flight controller’s firmware to the Copter V3.5.7  version should be upgraded.

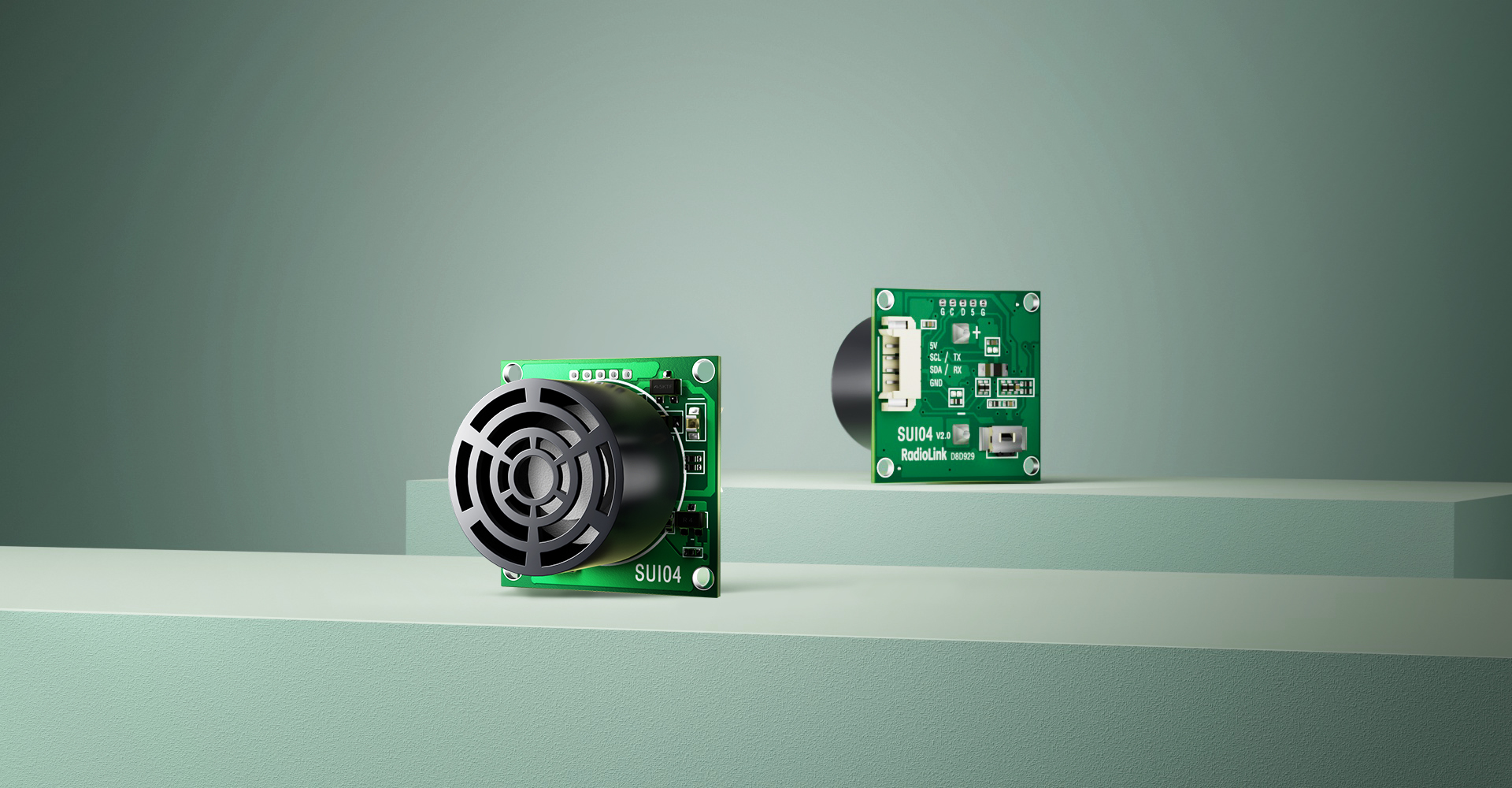

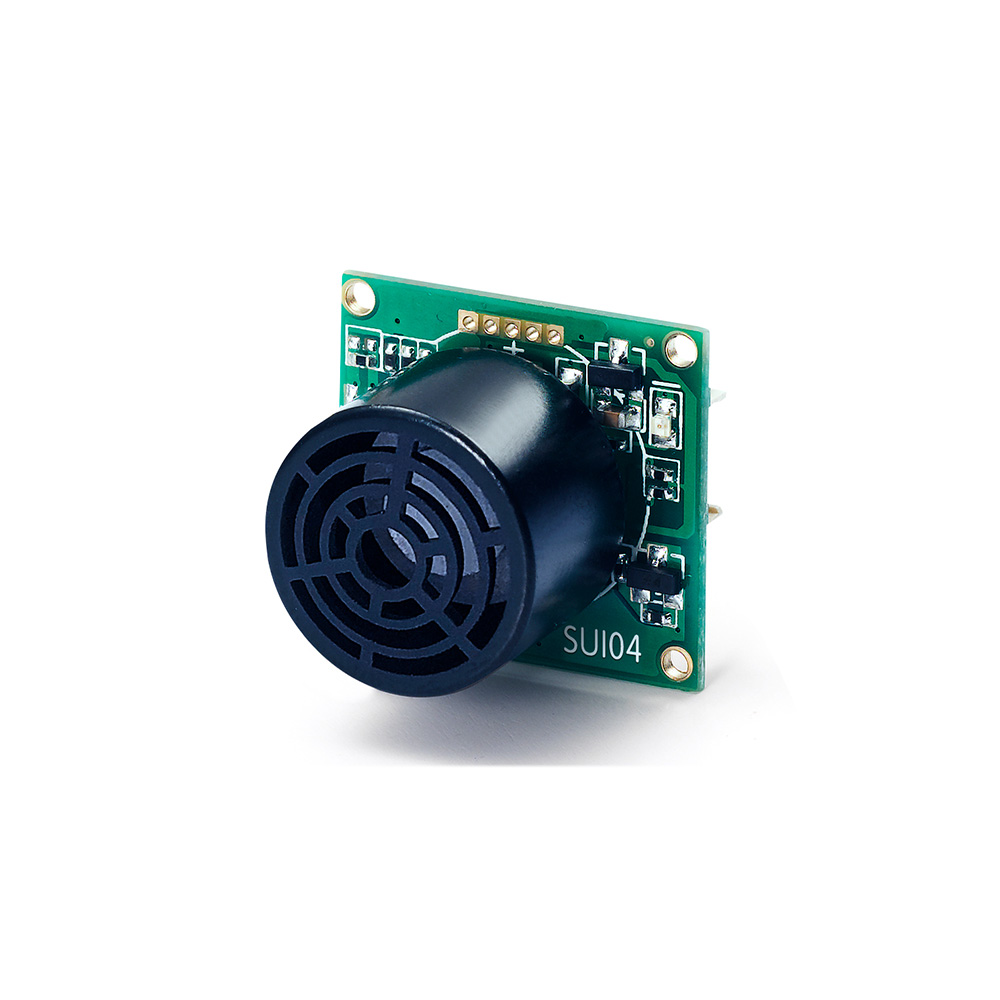

Transceiver with Single Detector

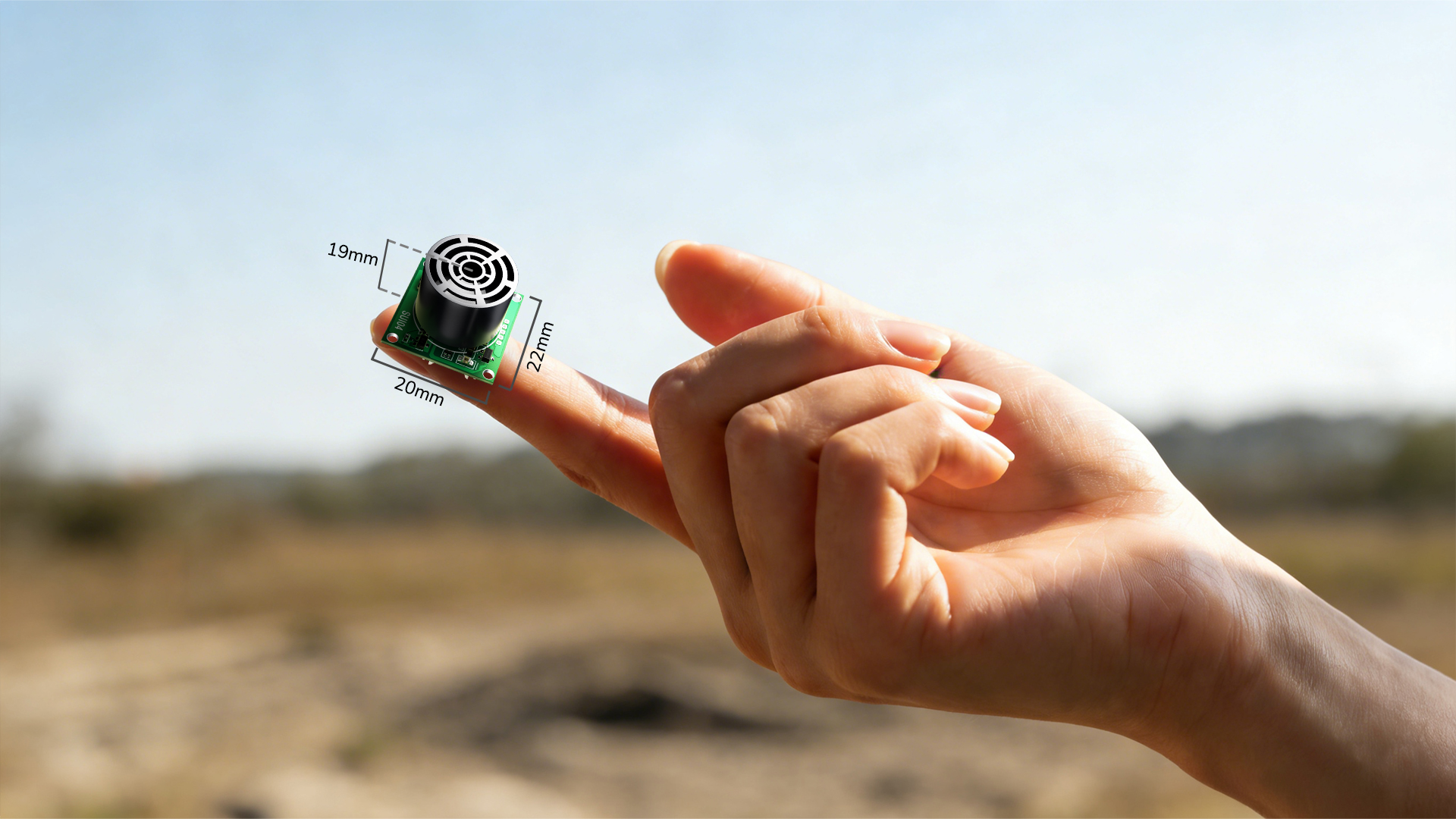

Transceiver with super mini size of 20*22*19MM （0.79”*0.87”*0.75”）  and light weight of 8g(0.28oz), even 210 racing drone can easily carry.
