PRM-03

Real-time OSD Information Telemetry Module

Real-time Telemetry

Real-time model data allows users to receive crucial information on the model's systems.

With flight module PRM-03 and flight controller crossflight/Radiolink PIXHAWK/Mini Pix/TURBO PiX/open-source PIXHAWK/APM, model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance are displayed on the transmitter screen.

Configurable sound/message alarms signal potential problems when low model voltage. A low model voltage alarm value can be customized.

Mini Enough

Compatible with flight controllers crossflight/Radiolink PIXHAWK/Mini Pix/TURBO PiX/open-source PIXHAWK/APM.

A weight of 12g(0.42oz) and a small size of 27*13mm (1.06"*0.51") make PRM-03 tiny enough even for a mini racing drone and glider.

Specifications

Size: 27*13mm (1.06"*0.51")

Weight (with wires): 12g(0.42oz)

Telemetry: model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance are displayed on the transmitter screen

Control Distance: same as the receiver control distance (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Voltage Input Range: 1S-12S LiPo Battery

Compatible Receiver: R12DS, R9DS (Old version receiver: R10DS, R10D, R9D)

Compatible Transmitter: AT10II/AT10/AT9S Pro/

AT9S/AT9

Compatible Flight Controller: crossflight/

Mini Pix/Radiolink PIXHAWK/TURBO PiX/open-source PIXHAWK/APM

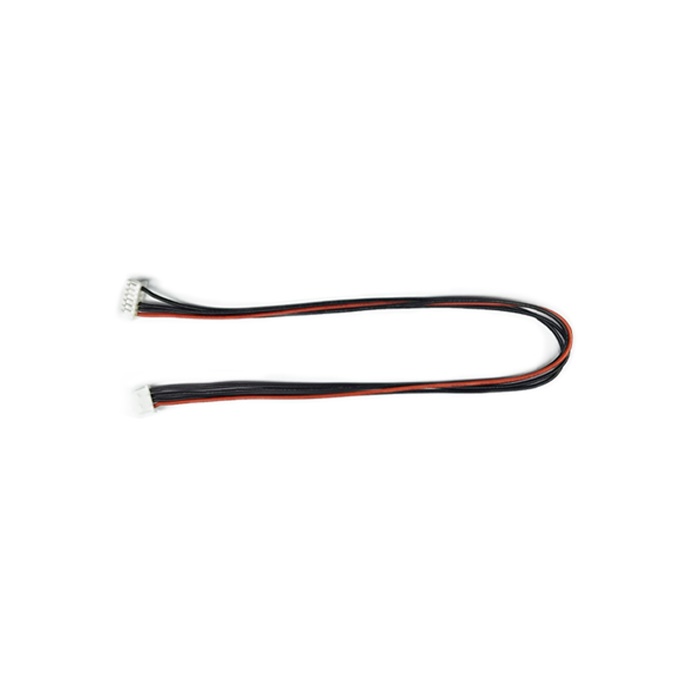

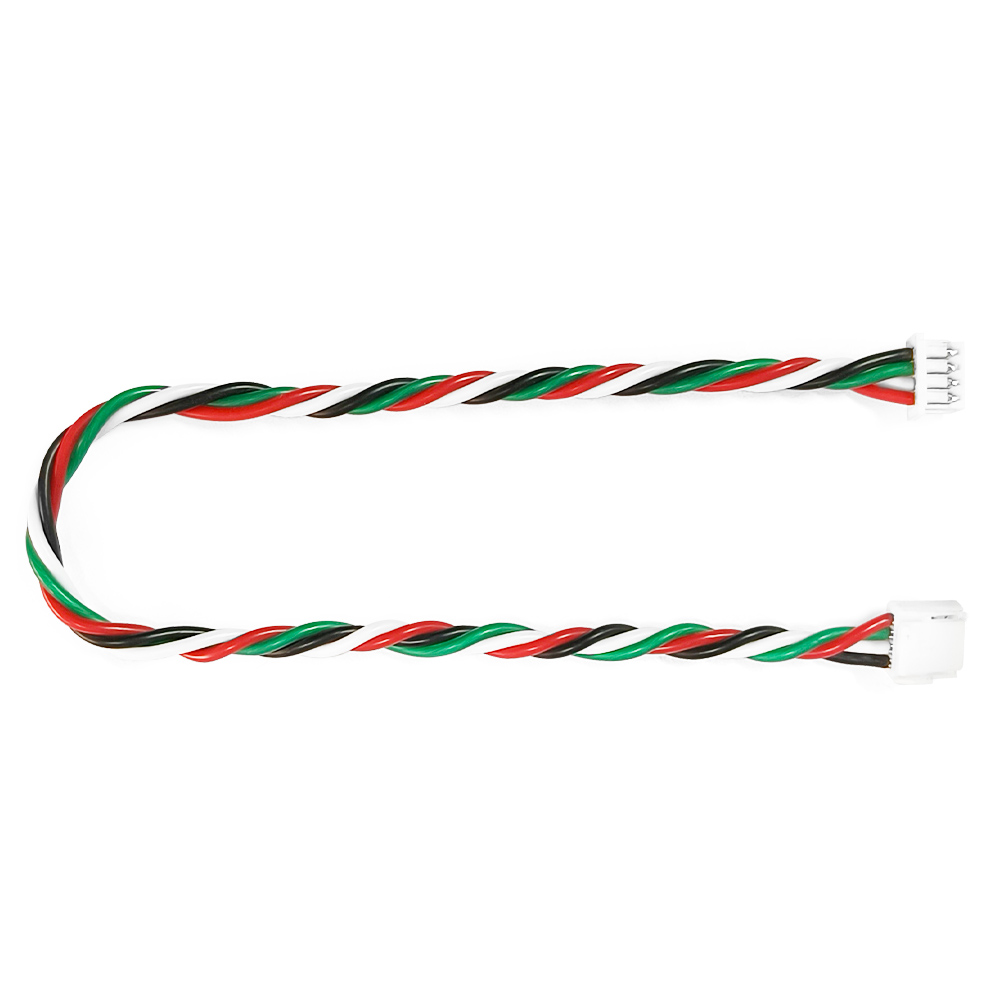

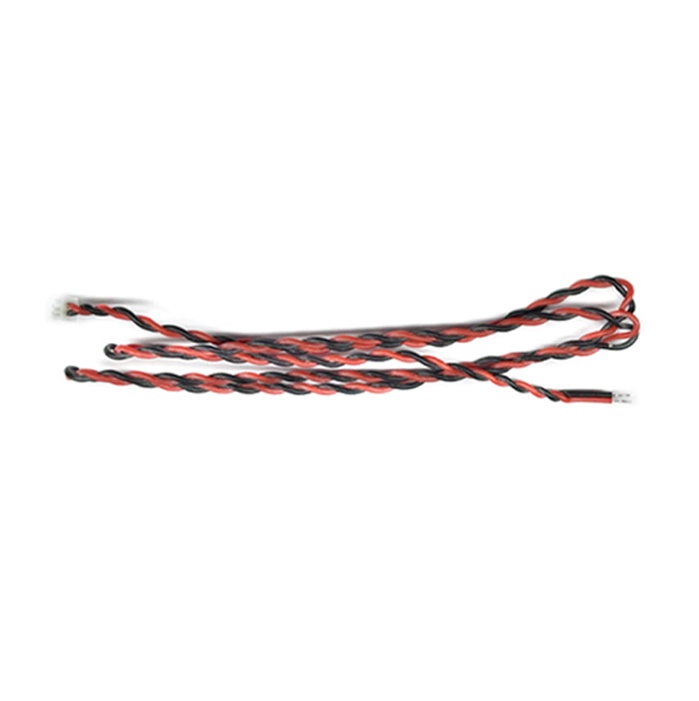

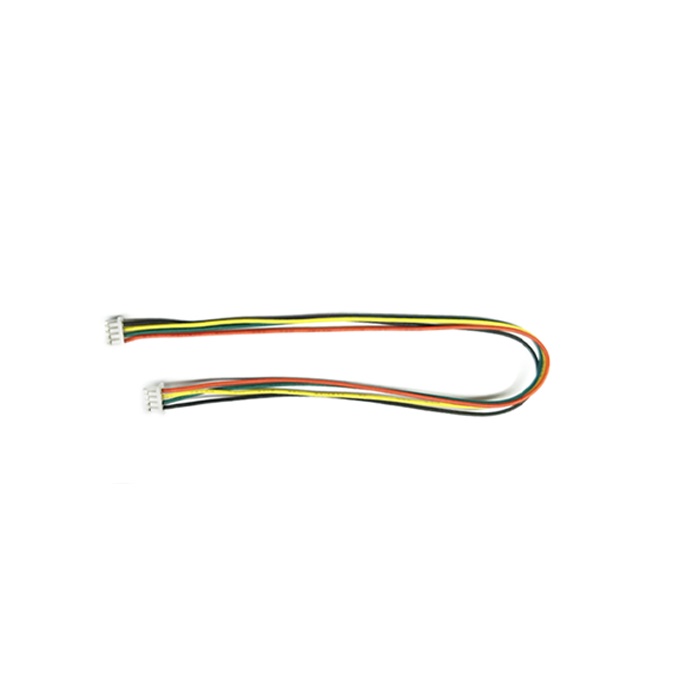

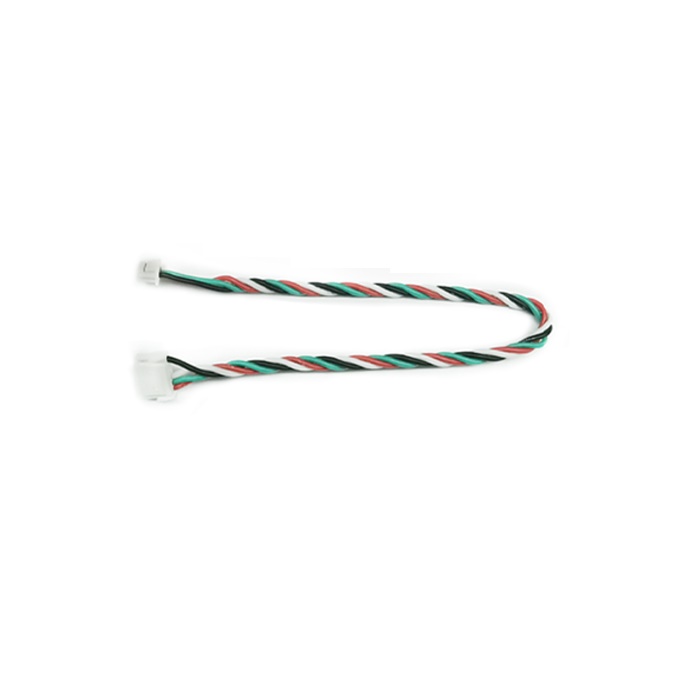

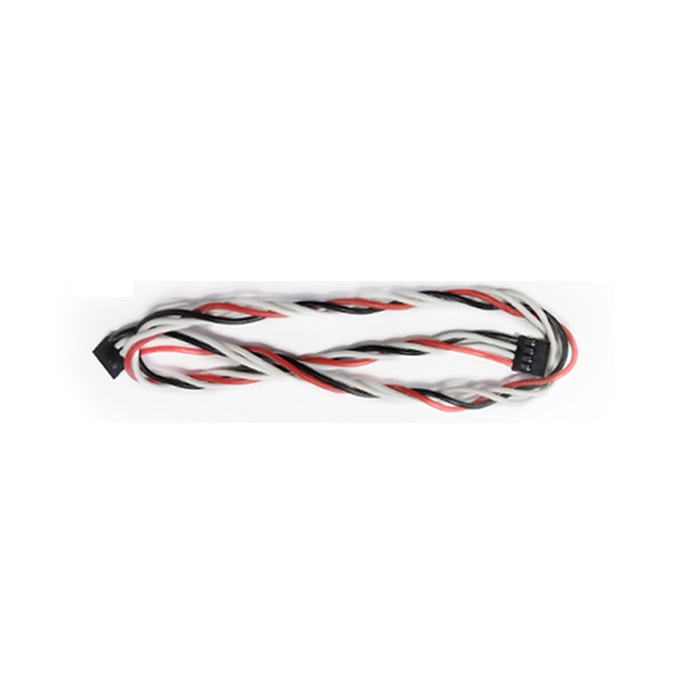

Package List for PRM-03
