Compatible with most of Cars and Boats





With 32bits high-speed chip, high-frequency switch-mode chip MP9943 from MPS, and 18 years of circuit design experience, COOL9030 makes the throttle sensitivity up to 2000. COOL9030 is perfectly compatible with most cars and boats including both twin-engine models like crawlers, drifting cars, tractor trucks, bait boats, 1/10th scale touring cars, buggies, short-course trucks, monster trucks, or tanks.

High Efficiency & Low Temperature, Durable with Great Adaptability





NMOS H-Bridge Drive Design



NMOS H-Bridge Drive Design makes the

internal resistance is far lower than PMOS.

Components of low resistance power and optimal driving voltage minimize the internal resistance and massively reduce the heat during operation. The maximum withstand current is up to 300A, and the maximum withstands temperature is 150 degrees because of the CMA drive tube design. The best model performance can be always ensured even after a long time of high-speed

driving or repeatedly slam on brakes.

Built-in Switching Regulator BEC, Efficient and Low Heat Radiation



The built-in high-efficiency and stable switching power supply BEC work with max output current 3A. No matter it is a 2S or 4S battery, it always maintains a stable voltage output of 5.2V even in the case of instantaneous high current. No inefficient heating as linear battery nor output voltage jitter from sudden loading of ordinary switch power, COOL9030 can easily drive all kinds of standard and high-voltage servos and other external electrical equipment.

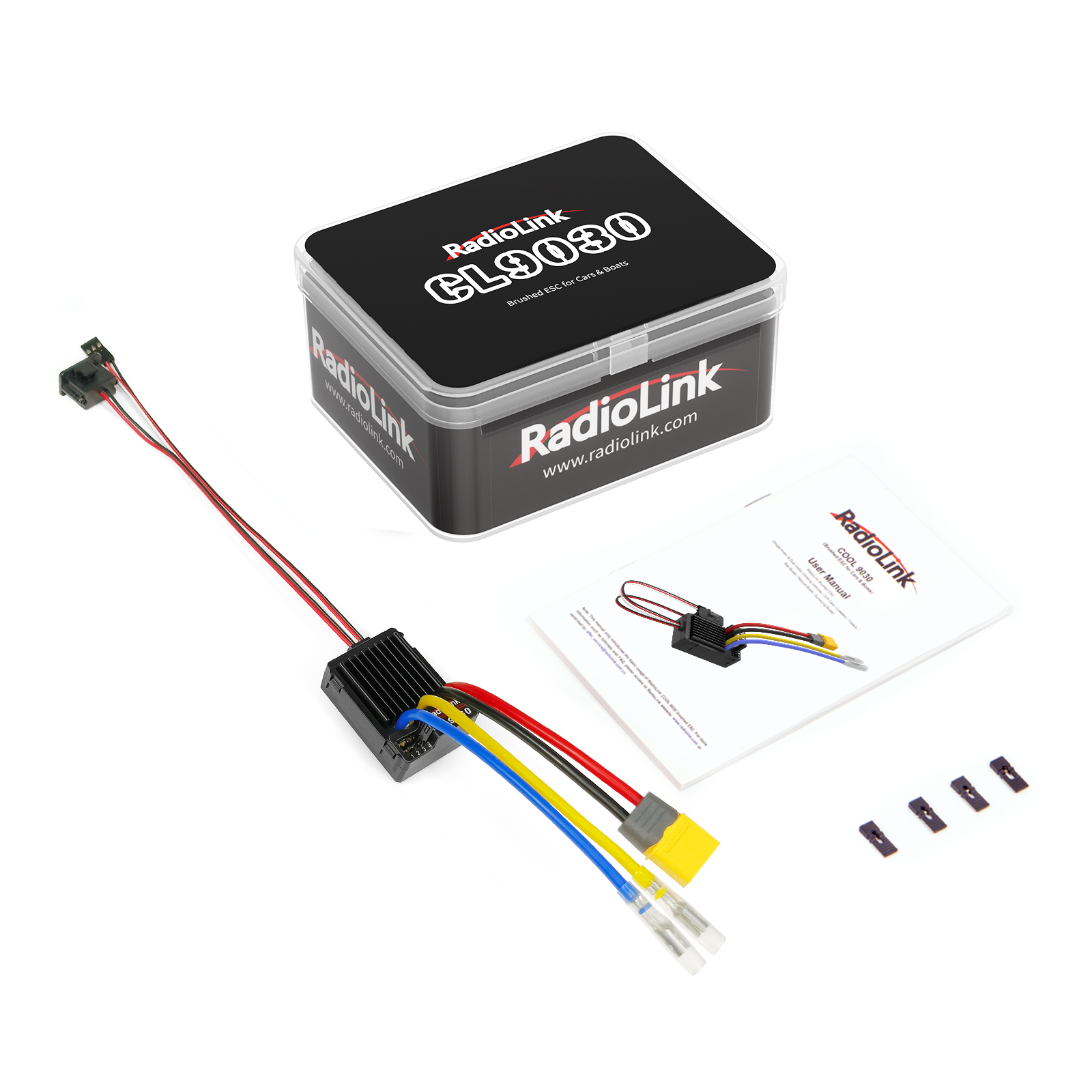

COOL 9030

Brushed ESC for Cars & Boats

2S-4S Battery Supported, Constant Current 90A





2S-4S lithium battery or 5-12 NIMH batteries of power supply with constant 90A current output. The low voltage protection warning tone of the lithium battery is in the factory default setting.

User-defined Output Voltage





The output voltage of BEC can be set to 5.5V or 7.5V.



Attention: Put the Jumper Cap onto the pin of the fourth row means the output voltage of BEC is 7.5V. Keep the pin of the fourth row is vacant means the output voltage of BEC is 5.5V.

Four Working Modes





There are four working modes: Boat Mode, Car Mode, Racing Mode, and Crawler Mode.

Drivers can control models at various speed as wish because of the linear throttle and brake, which is much smoother and more sensitive than traditional ones.

Boat Mode

Forward/Reverse without Brake.

The extremely low heating of both motors and BEC ensures COOL9030 maintains perfect performance even in a sealed environment for a very long time.

Training Mode

Forward/Reverse with Brake.

When the car is forwarding, push the throttle back to center and stop for a short period (0.5 to 1s) to brake. Then re-push the throttle further for car backward.

Racing Mode

It has forward and brake functions only. NO reverse.

Crawler Mode

The crawler mode uses “Single-click” method to make the vehicle reverse, when moving the throttle stick from neutral zone to backward zone, the vehicle reverses immediately.

Multiple Protection





COOL9030 has the protection function of lithium battery over discharge, over temperature, abnormal voltage input and Water-proof.

Battery Over Discharge Protection

When the voltage of a single cell is lower than 3.25V, the output power will be reduced gradually. When lower than 3.0V, the ESC will be automatically powered off to protect the model battery and prevent lithium battery from over discharge.

Water-proof Protection

Water-proof by software and Nano Coating make COOL9030 suitable for all-weather condition races.

Over-Temperature Protection

When the ESC temperature reaches 85°C, the car/boat stop to working. When the ESC temperature reduces to 75°C, the model speed will be back to normal mode.

Abnormal Voltage Input Protection

The max battery input of COOL9030 is 4S lithium. When the input voltage is over 18V, the ESC will not be activated.

Accurate Low Voltage Alarm





The Kalman Filter technology applied in COOL9030 can accurately identify in real-time the instant voltage when power on and rotors locked.



Personalized Lithium Battery Protection Function

Turn-on Lithium Battery Protection Function



Put the Jumper Cap onto the pin of the third row means the lithium battery protection function is turn on.

Turn-off Lithium Battery Protection Function



Keep the pin of the third row is vacant means the lithium battery protection function is turn off.

2KHz PWM Frequency





PWM frequency is set as 2KHz, meeting the needs of drivers to accurately adjust the forward power of motors. The advanced rectifier technology provides the more outstanding experience of remote control.

Enterprise for Bait boat

Remote Control System:

6 channels transmitter RC6GS V2 or 8 channels transmitter T8S/T8FB support low RSSI alarm setting makes the bait boat will not out of control.

Receiver R7FG/R8F support engine voltage telemetry that keeps the bait boat will not out of control because of low voltage.

Flight Control System:

The bait boat can also be equipped with Mini Pix flight control and 50 centimeters positioning accuracy M8N GPS TS100. It can pre-set sailing routes, automatically implement maritime patrols and data collection, and automatically return home when out-of-control.

The bait boat also supports real-time information such as Latitude, longitude, distance, speed, etc. feedback if equipped with an OSD telemetry module. That makes scientific and technological fishing and precise cruise come true.
