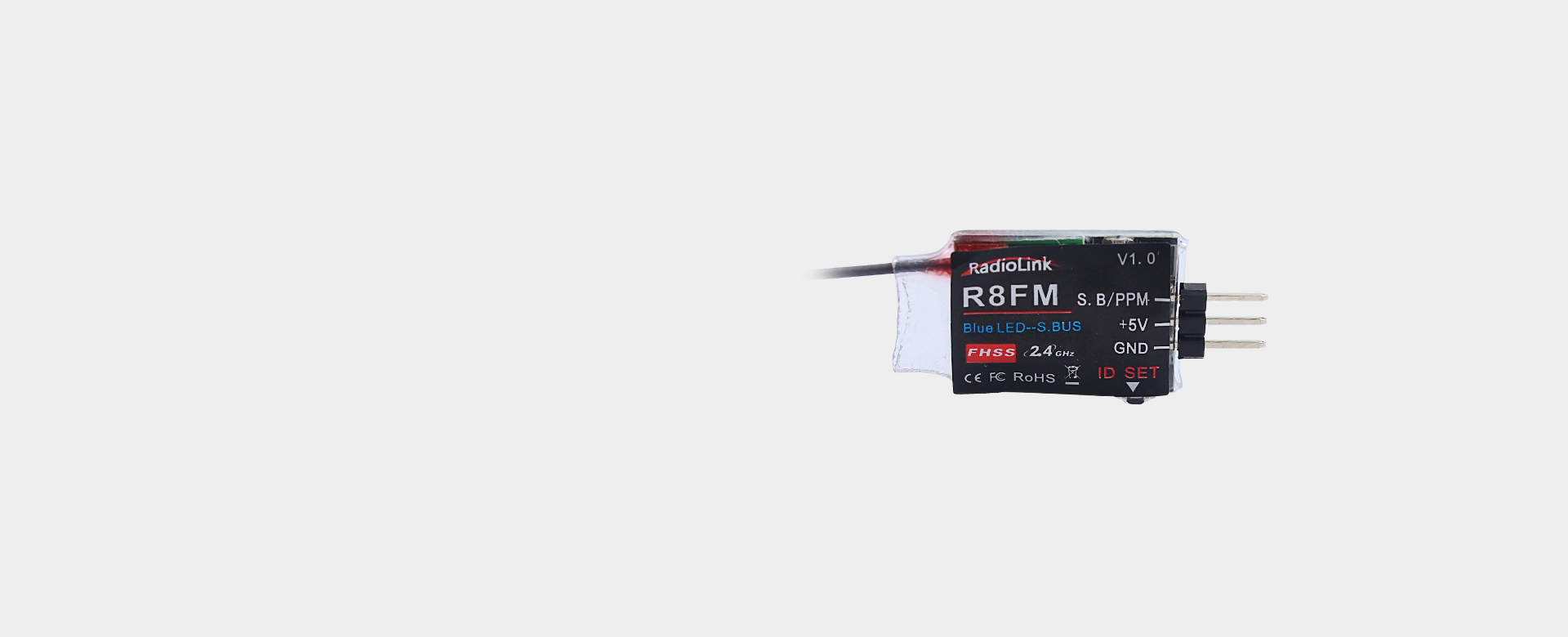

R8FM, Super Mini Receiver
Super light weight of 2.5g(0.09oz) and small size of 16.0*21.5*1.0mm(0.63*0.85”*0.04”), tiny enough even for racing drone.
8 channels of SBUS/PPM signal output, compatible with all kind of flight controllers.
2KM(1.24Miles) range enables all RC fun.

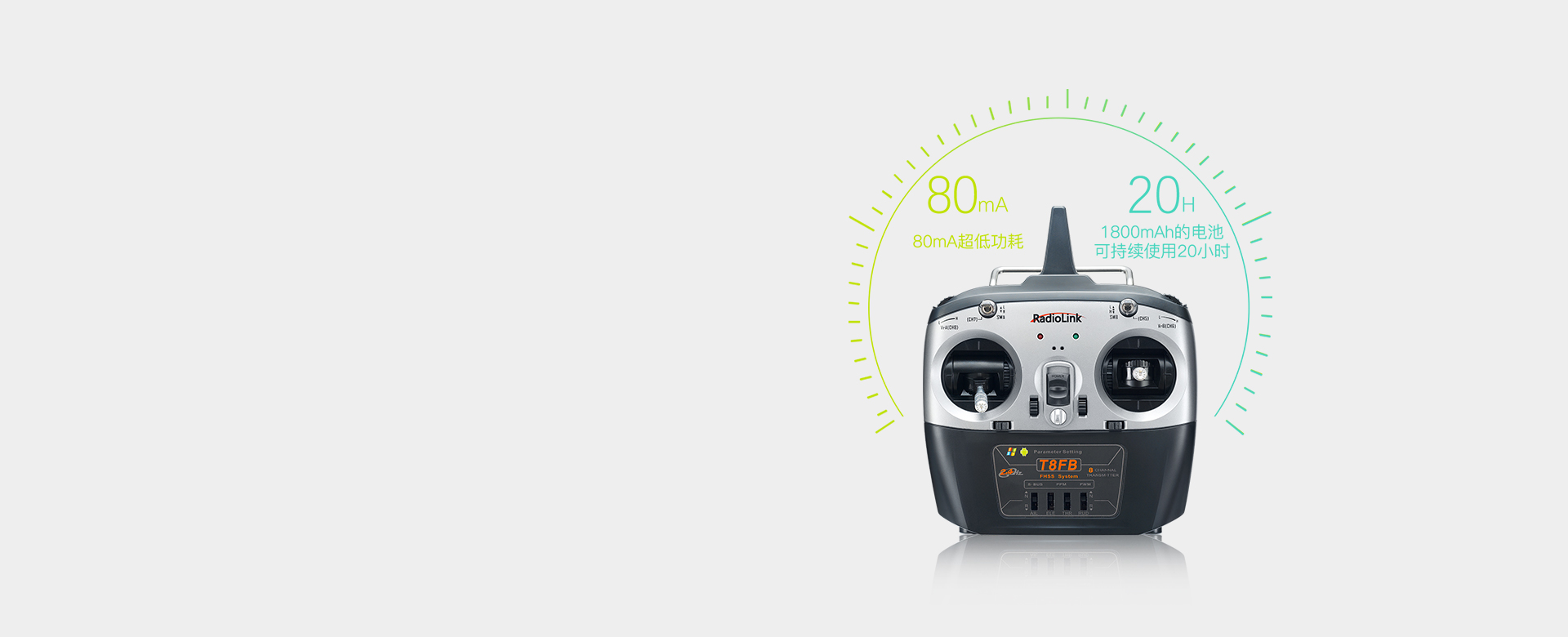

Low Consumption of Battery
Switching Mode Power Supply (SMPS) keeps the operating current of T8FB less than 80mA.
With a 3S 1800mAh LiPo battery in T8FB, the RC fun last more than 20 hours.
Adapts to All Types of Models
Compatible with all airplanes including fixed wing 2 airfoils 3 rears, glider 4 airfoils 2 rears and all multirotor..
The receiver with 21cm(8.27”) antenna is also perfect for easy RC boats and boats control.
Programmable Mix Control
Channels five through eight can be programmed to any advanced setting
Flight modes are set with the two 3-way switches in the flight controller PIX by default.
Even beginners can enjoy T8FB without manual.
RadioLink’s Voltage Protection System
RadioLink’s voltage protection software ensures vital components are protected from a reverse polarity connection.
Universal JST connector with allows T8FB easily adapted for various battery layouts: 4pcs 1.5AA batteries or 2S-4S LiPo battery.
Wide Operating Voltage Tolerance：4.8V~18V
*Battery Box dimensions: 114.5(L)x35.5(W)x24(H)mm (4.5”x1.4”x0.94”)
Easy to use, certainly worths for its value
Best choice for beginners
*T8FB firmware upgrade software is compatible with win7, win8, win10 and XP OS while parameter setup APP supports android mobile phone ONLY with display. The App displayed language will automatically set as the mobile.
Parameters Setup Via Android APP
Connect T8FB to an android phone with a USB cable and an OTG cable to setup parameters.
Upgrade firmware via computer always keeps T8FB with the most advanced system and program.
The USB data backup copy function helps saving and copying customized parameter easily.
Compatible with SBUS, PPM and PWM
Standard packed with a 8-channel receiver R8EF, SBUS, PPM and PWM can operate simultaneously for seamless user control.
No need for extra cables or any signal converter, reducing the weight of aircraft.
Working with switches in various lengths, easy setup and control.
Gimbal Precision Improved

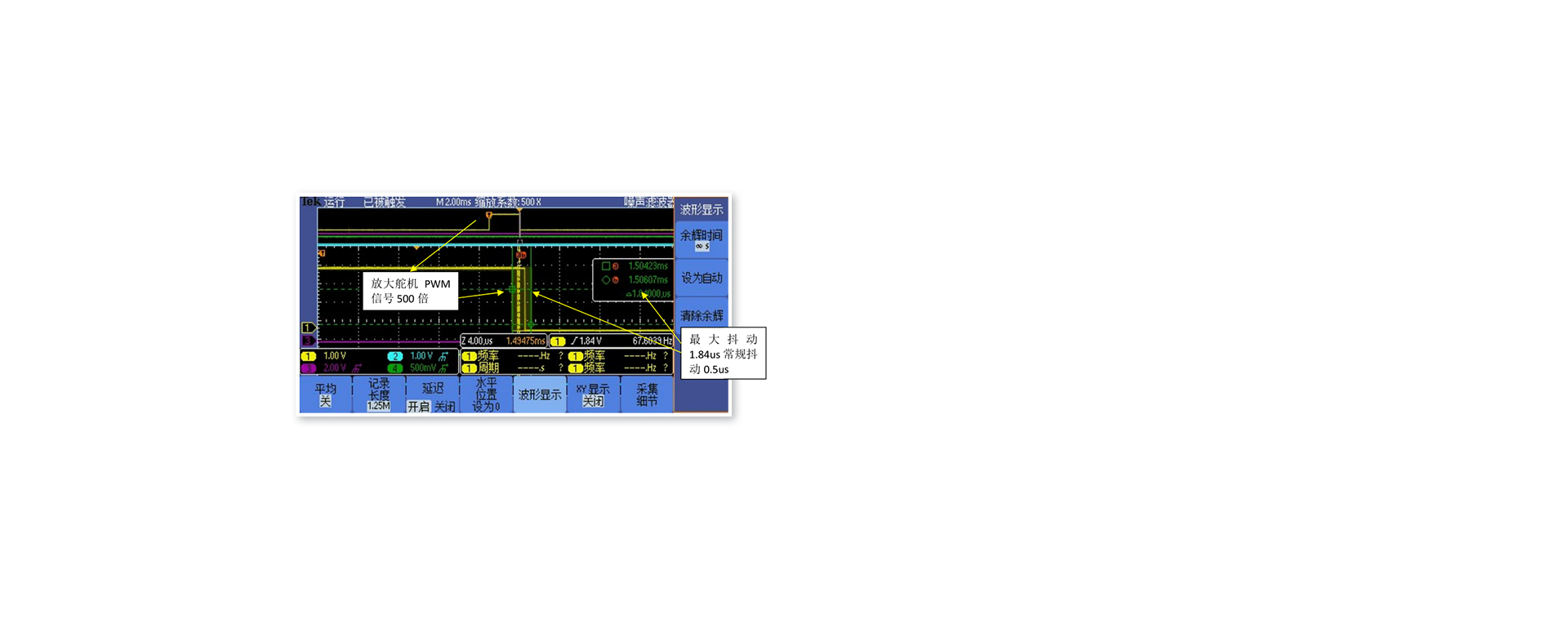

Optimal design of PCB layout ensures maximum PWM jitter of 1.84us with a standard of just 0.5us. It is 14 times better than regular jitter 7us of mainstream 16-channel transmitter in the market. Same joysticks components as AT9S are used.
Anti-interference Ability and Control Distance Upgrade
With the chip TI CC2500(Open TX, same as the Frsky X9D) and the transmission rate three times faster than Open TX, T8FB uses same FHSS algorithm of AT9S and 67 channels pseudo random frequency sequence hopping, achieving better anti-interference ability to both same frequency band and different frequency bands. Control distance is 2KM(1.24Miles) in air .
Operating current of 80mA 8CH Complete Functions FHSS& 67Channels SBUS/PPM/PWM
Pseudo Random Frequency Hopping
Wide Operating Voltage Tolerance Mini Receiver APP Param. Setup Battery Polarity Control
Inherits Industrial Design
Designed by the same professional company of AT9, T8FB is the perfect choice for RC fun with innovation and independent design concept.
Elevator/Rudder Gimbal Stick
Aileron Phase Switch
Elevator Phase Switch
Aileron/Throttle Gimbal Stick
Rudder Phase Switch
Throttle Phase Switch
