How to connect Radiolink transmitter T8FB with the TBS Crossfire module?

Prepare the equipment:

Transmitter T8FB*1

Crossfire module*1

Crossfire module connect wire*1

Simulator connect wire*1

Connection steps:

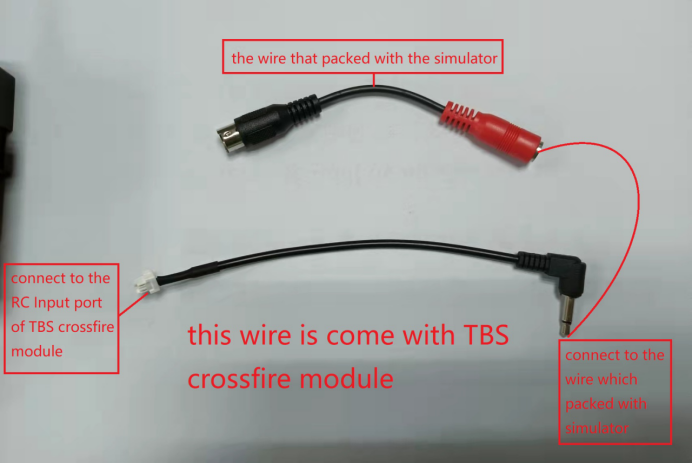

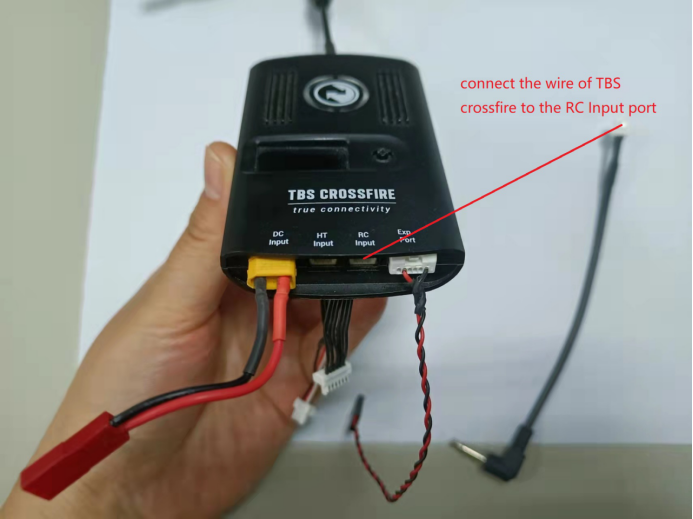

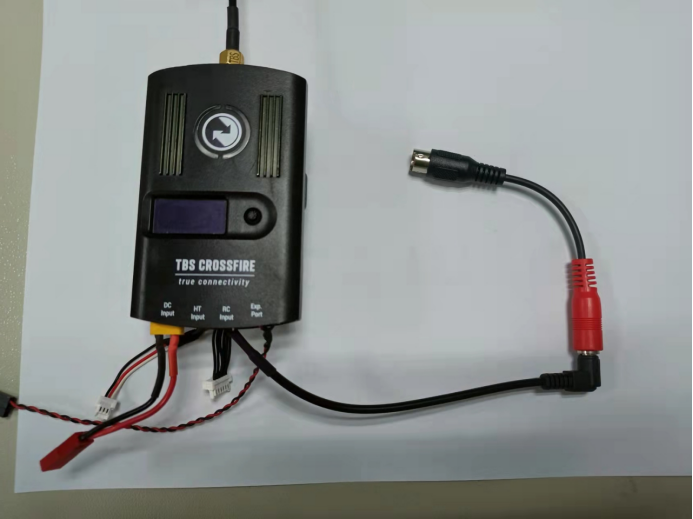

1. Connect the wire which packed with the simulator to the wire that is packed with the simulator, as the pictures below:

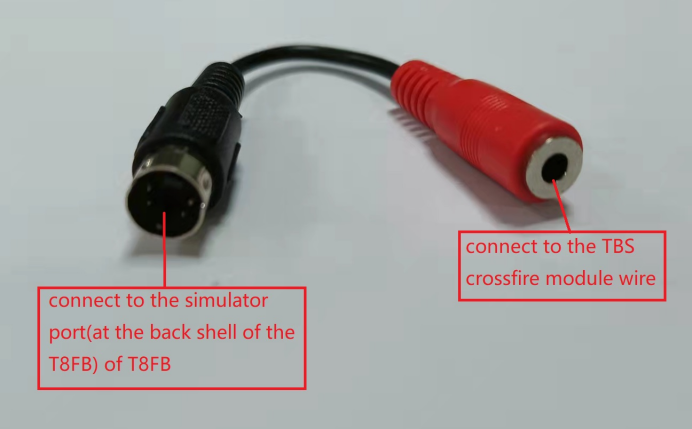

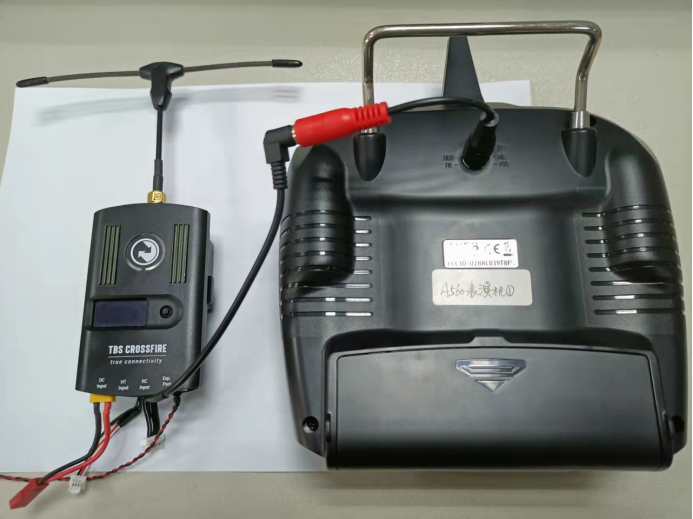

2. Connect the simulator connect wire to the simulator port of the T8FB, as the pictures below:

3. The connection has finished. Parameters setup please check on the user manual of the Crossfire module.
